KIBRI 100 153KBR.11-I1225

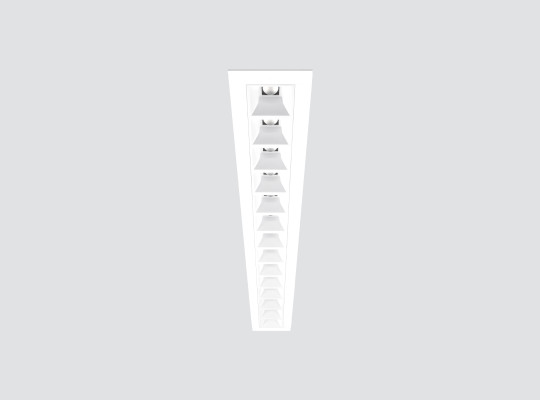

Linear fixture in 870mm length and in a width of 70mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
White finish darklight reflector in 21 cells designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
It is possible to combine different lengths and junction modules in different ways to create customized design.
DOWNLOADS
ACCESSORIES AND FINISHES

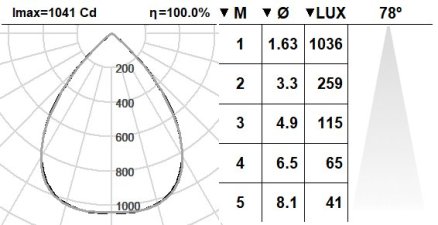

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1573lm
- Luminaire efficiency: 141 lm/W
- Light source luminous flux: 1605lm
- CRI: 80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 78 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
UGR: C0º = 16,6 | C90º = 16,5 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 853x57mm
- Luminaire dimensions: 870x70mm
- Height: 90 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 11,12 W
- Light source power: 8,4 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
11: White frame - white reflector
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 853x57mm
- Luminaire dimensions: 870x70mm
- Height: 90 mm
STANDARD FINISHES
-
11: White frame - white reflector
All RAL colours are available under request
