UNEDO 100 160UND.4-I1191

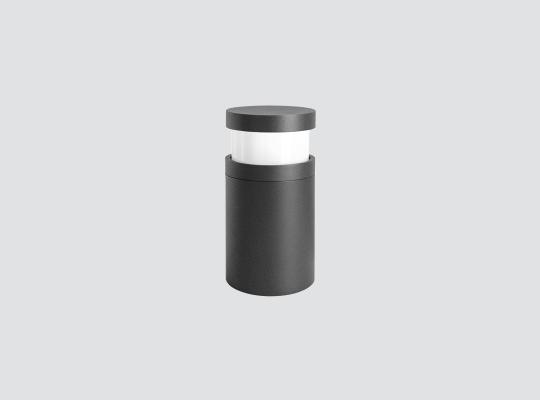

Bollard head with a diameter of 140mm.
Bollard height : 239mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK06.
Die-cast aluminium body and top cover made of die-cast aluminium and extruded aluminium tube coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
7mm opal borosilicate glass.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included. Ambient temperature: up to 50ºC.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI) Mounting base supplied with the fixture.
Accessory for installation in concrete reference F3.P1.BLD
Accessory for installation in grass reference F3.O1.BLD
Luminaire luminous flux: 337lm
Luminaire connected power: 12.9 W
Luminaire efficiency: 26 lm/W
Light source luminous flux: 1984lm
Light source power: 11.53 W
mA: 350 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: 80
Beam angle: 360
Photobiological risk: 1
This product contains a light source of energy efficiency class: C
Rated Median useful life: >72.000h L80B10
Class: 1
IP: 66
IK: IK06
Incandescent filament: 850
Luminaire diameter: 140mm
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi
-
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
