KIBRI 100 161KBR.25-I1215

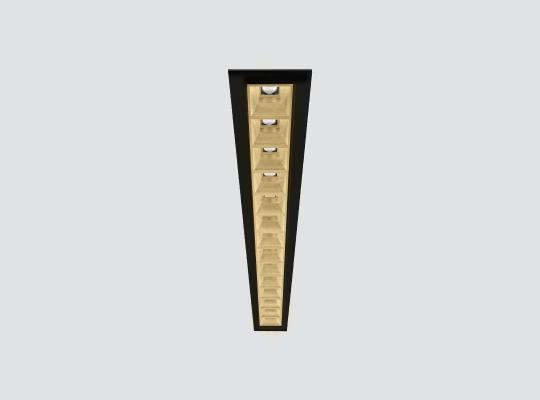

Recessed ceiling mounted linear downlight with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixture in 590mm length and in a width of 70mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL upon request.
Metallised darklight reflector in 14 cells in golden finish with optics designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included. Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management.
Ceiling-mounted using steel support with screws.It is possible to combine different lengths and junction modules in different ways to create customized design.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 974lm
- Luminaire efficiency: 117 lm/W
- Light source luminous flux: 1070lm
- CRI: 80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 92 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
UGR: C0º = 18,8 | C90º = 19,1 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 573x57mm
- Luminaire dimensions: 590x70mm
- Height: 90 mm Kg
- Weight: 1,764 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 8,35 W
- Light source power: 5,6 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
25: Black frame - golden reflector
The full range of RAL Classic colours (216 colours) is available upon request.
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 573x57mm
- Luminaire dimensions: 590x70mm
- Height: 90 mm
- Weight: 1,764 Kg
STANDARD FINISHES
-
25: Black frame - golden reflector
The full range of RAL Classic colours (216 colours) is available upon request.
