BSM 166BSM.2-R666
Circular design with trimless appearance in diameter 97mm.

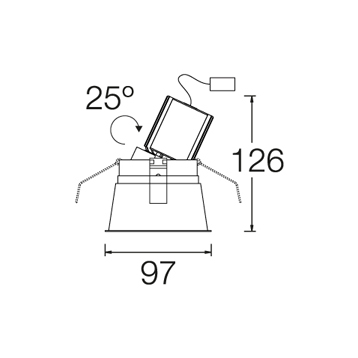

Tilt version, adjustable to 25º.
Aluminium body and circle powder painted in black.
Deep regressed light source for minimal glare to ensure visual comfort.
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted with spring clamps for easy installation.
Luminaire luminous flux: 837lm
Luminaire connected power: 11.27 W
Luminaire efficiency: 74 lm/W
Light source luminous flux: 940lm
Light source power: 10 W
mA: 300 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90

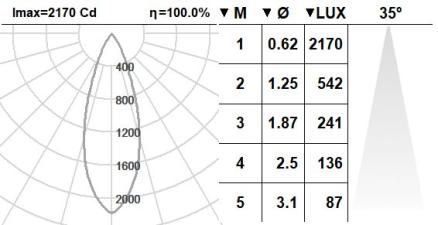

Beam angle: 36
UGR: <19
Photobiological risk: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 93mm
Luminaire diameter: 97mm
Weight: 0.31 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
2: RAL9005: Jet Black
All RAL colours are available under request
