BSM 182BSM.2-R1097

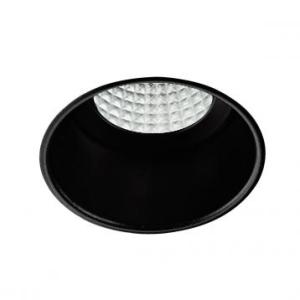

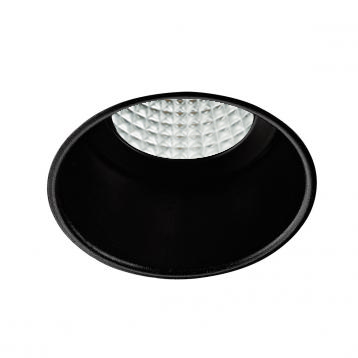

Circular design with trimless appearance in diameter 88mm.
Aluminium body and circle powder painted in assorted finishes, customized RAL under request.
To complete the effect of this fixture, it is suggested that the circle be painted the same RAL colour as the ceiling.
Accessory available to increase the protection rating to IP44 from underneath [reference M2.A0088].
Honeycomb anti-dazzle screen accessory to increase visual comfort [reference M6.A0050]. Remote driver included.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option.
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted with spring clamps for easy installation.
Luminaire luminous flux: 1306lm
Luminaire connected power: 17.05 W
Luminaire efficiency: 77 lm/W
Light source luminous flux: 2040lm
Light source power: 15.4 W
mA: 450 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90
Beam angle: 34
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: 50.000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 82mm
Luminaire diameter: 88mm
Weight: 0.26 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC)
SE: On/Off (AC/DC) + Battery 3h
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM + 3h battery
B: Bluetooth-Casambi
-
2: RAL9005: Jet Black
All RAL colours are available under request
