BSM 187BSM.1-R1185
Circular design with trimless appearance in diameter 141mm.
Aluminium circle powder painted in assorted finishes, customized RAL under request.
To complete the effect of this fixture, it is suggested that the circle be painted the same RAL colour as the ceiling.
High-purity aluminium interior reflector available in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
LED module Tunable White: 2700K to 6500K.
Remote driver supplied.
Electronic standard options for lighting control: SwitchDIM, ColourSwitch, DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.
Luminaire luminous flux: 1255lm
Luminaire connected power: 14,3 W
Luminaire efficiency: 88 lm/W
Light source luminous flux: 1410lm
Light source power: 11 W
mA: 350 mA
Colour temperature: 2700K-6500K
Chromaticity Tolerance: MacAdam 3
CRI: >90

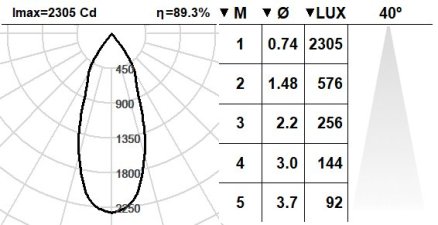

Beam angle: 40
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >60000h L90B10
Class: 2
IP: 20
Incandescent filament: 650
Recessed diameter: 137mm
Luminaire diameter: 141mm
Weight: 1.25 Kg
Electronic Accessories:
T: Tunable White DALI-2/switchDIM/ColourSwitch
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
Downloads
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
