BSQ 189BSQ.1-R1186
Square design with trimless appearance in 177mm x 177mm.
Aluminium interior frame powder painted in assorted finishes, customized RAL under request.
To complete the effect of this fixture, it is suggested that the interior frame be painted the same RAL colour as the ceiling.
High-purity aluminium interior reflector available in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
LED module Tunable White: 2700K to 6500K.
Remote driver supplied.
Electronic standard options for lighting control: SwitchDIM, ColourSwitch, DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.
DOWNLOADS
ACCESSORIES AND FINISHES

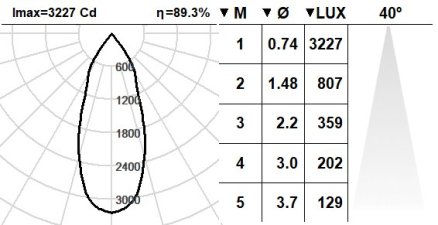

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1762lm
- Luminaire efficiency: 89 lm/W
- Light source luminous flux: 1980lm
- CRI: >90
- Colour temperature: 2700K-6500K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 40 º
- This product contains a light source of energy efficiency class: F
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
UGR: C0º = 16,8 | C90º = 16,8 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 170x170mm
- Luminaire dimensions: 177x177mm
- Height: 233 mm Kg
- Weight: 1.4 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 19,8 W
- Light source power: 16 W
- Constant current: 500 mA
ELECTRONIC EQUIPMENT:
-
T: Tunable White DALI-2/switchDIM/ColourSwitch
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 650 ºC
- Embedding dimensions: 170x170mm
- Luminaire dimensions: 177x177mm
- Height: 233 mm
- Weight: 1.4 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
