ADHARA 300 311ADH.01.00-I2168
Surface-mounted downlights with symmetrical light distribution to achieve an effective task or ambient lighting.
Lampshade in diameter 560mm.
Silicone optic to control and direct the light.
Lampshade and aluminium body liquid painted with textured finish.
Select from a vast range of colours and finishes to perfectly customize your fittings. Whether you prefer a single colour or want to create a unique combination, we offer flexible options. You can choose a RAL colour for the exterior of your lampshade and pair it with various finishes for the interior.
Removable lampshade that can be easily replaced with another design or finish.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounting to the ceiling plate with two securing holes. Cable entry from the top of the luminaire.
DOWNLOADS
ACCESSORIES AND FINISHES

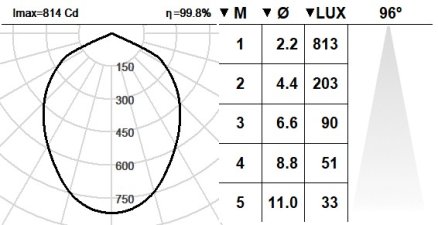

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1727lm
- Luminaire efficiency: 101 lm/W
- Light source luminous flux: 2785lm
- CRI: >80
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 95 º
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 750 ºC
- Luminaire diameter: 560mm
- Height: 180 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 17,1 W
- Light source power: 15,43 W
- Constant current: 500 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
01: RAL9010: Pure White textured
02: RAL9005: Jet Black textured
13: RAL 1023 Traffic Yellow textured
14: RAL 1037 Sun Yellow textured
15: RAL 2012 Salmon Orange textured
16: RAL 3000 Flame red textured
17: RAL 5024 Pastel Blue textured
18: RAL 5003 Sapphire Blue textured
19: RAL 6018 Yellow Green textured
20: RAL 6000 Patina Green textured
21: RAL 8001: Ochre Brown textured
22: RAL8016 Mahogany Brown textured
01: RAL9010: Pure White textured
30: Golden
01: RAL9010: Pure White textured
50: Silvered
22: RAL8016 Mahogany Brown textured
30: Golden
02: RAL9005: Jet Black textured
40: Copper
15: RAL 2012 Salmon Orange textured
30: Golden
16: RAL 3000 Flame red textured
10: RAL9010 Pure White
17: RAL 5024 Pastel Blue textured
50: Silvered
18: RAL 5003 Sapphire Blue textured
10: RAL9010 Pure White
20: RAL 6000 Patina Green textured
40: Copper
20: RAL 6000 Patina Green textured
50: Silvered
21: RAL 8001: Ochre Brown textured
20: RAL9005: Jet Black
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 750 ºC
- Luminaire diameter: 560mm
- Height: 180 mm
01: RAL9010: Pure White textured
02: RAL9005: Jet Black textured
13: RAL 1023 Traffic Yellow textured
14: RAL 1037 Sun Yellow textured
15: RAL 2012 Salmon Orange textured
16: RAL 3000 Flame red textured
17: RAL 5024 Pastel Blue textured
18: RAL 5003 Sapphire Blue textured
19: RAL 6018 Yellow Green textured
20: RAL 6000 Patina Green textured
21: RAL 8001: Ochre Brown textured
22: RAL8016 Mahogany Brown textured
01: RAL9010: Pure White textured
30: Golden
01: RAL9010: Pure White textured
50: Silvered
22: RAL8016 Mahogany Brown textured
30: Golden
02: RAL9005: Jet Black textured
40: Copper
15: RAL 2012 Salmon Orange textured
30: Golden
16: RAL 3000 Flame red textured
10: RAL9010 Pure White
17: RAL 5024 Pastel Blue textured
50: Silvered
18: RAL 5003 Sapphire Blue textured
10: RAL9010 Pure White
20: RAL 6000 Patina Green textured
40: Copper
20: RAL 6000 Patina Green textured
50: Silvered
21: RAL 8001: Ochre Brown textured
20: RAL9005: Jet Black
