KIBRI 300 350KBR.11-I1213

CLASS1 IP20 FIL650 +RAL CE
Surface mounted linear downlights with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixture in 284mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
White finish modular optics in 7 cells designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using cleats.

It is possible to combine different lengths and junction modules in different ways to create customized design.

F3KBR0-11

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

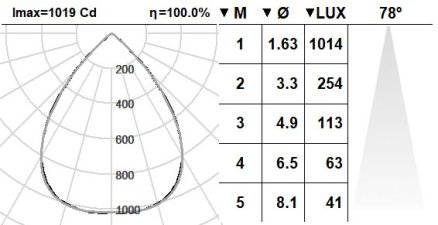

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 1539lm
  • Luminaire efficiency: 123 lm/W
  • Light source luminous flux: 1570lm
  • CRI: 80
  • Colour temperature: 3000K
  • Chromaticity Tolerance: MacAdam3
  • Beam angle: 78
  • This product contains a light source of energy efficiency class: C
  • LED reliability at nominal Ta = 25ºC: 72.000h L80B10
  • UGR: <19 under the below indicated parameters

    Room dimensions X=4H/Y=8H
    Reflectance 20% | 50% | 70%
    Luminaire spacing = 0.3

150KBR.11-I1213

TECHNICAL DATA

  • Class: I
  • IP: 20
  • Incandescent filament: 650 ºC
  • Luminaire dimensions: 284x50mm
D3D0KBR DP3D0KBR

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 12,5 W
  • Light source power: 8,8 W
  • Constant current: 450 mA

ELECTRONIC EQUIPMENT:

  • S: On/Off

  • D: DALI-2/switchDIM

  • B: Bluetooth-Casambi

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 11: White frame - white reflector 11: White frame - white reflector

All RAL colours are available under request

TECHNICAL DATA

  • Class: I
  • IP: 20
  • Incandescent filament: 650 ºC
  • Luminaire dimensions: 284x50mm
D3D0KBR DP3D0KBR

STANDARD FINISHES

  • 11: White frame - white reflector 11: White frame - white reflector

All RAL colours are available under request
