KIBRI 300 350KBR.11-I2904
Linear fixture in 284mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
White finish darklight reflector in 7 cells designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using cleats.
It is possible to combine different lengths and junction modules in different ways to create customized design.
DOWNLOADS
ACCESSORIES AND FINISHES

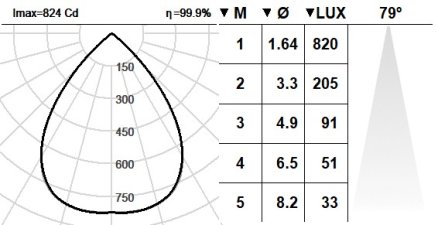

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1245lm
- Luminaire efficiency: 100 lm/W
- Light source luminous flux: 1270lm
- CRI: 90
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 78 º
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 72.000h L80B10
UGR: C0º = 19,6 | C90º = 19,5 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 284x50mm
- Height: 69 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 12,5 W
- Light source power: 8,8 W
- Constant current: 450 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off
-
D: DALI-2/switchDIM
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
11: White frame - white reflector
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 284x50mm
- Height: 69 mm
STANDARD FINISHES
-
11: White frame - white reflector
All RAL colours are available under request
