HORIZON 300 381HRN.1-I1612

CLASS1 IP20 FIL650 +RAL CE

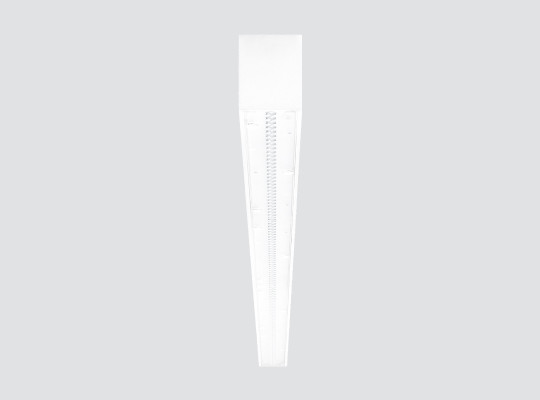

Recessed surface mounted linear downlights with asymmetrical light distribution to achieve an effective task or accent lighting.
Linear fixtures in 576mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
PMMA optic to achieve specific photometric results.
Highly efficient linear printed circuit board.
Accessories available to create customized linear systems.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using cleats.
It is possible to combine different lengths and junction modules in different ways to create customized design.

F101MDW

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 2079lm
  • Luminaire efficiency: 122 lm/W
  • Light source luminous flux: 2505lm
  • CRI: 80
  • Colour temperature: 3000K
  • Chromaticity Tolerance: MacAdam 3
  • Beam angle: ASY
  • This product contains a light source of energy efficiency class: C
  • LED reliability at nominal Ta = 25ºC: 54.000h L80B10
  • Cd/Klm: 974
181HRN.1-I1612

TECHNICAL DATA

  • Class: I
  • IP: 20
  • Incandescent filament: 650 ºC
  • Luminaire dimensions: 576x50mm
  • Weight: 2.22 Kg
D101_102MDW DP101_102MDW

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 17 W
  • Light source power: 13,8 W
  • Constant current: 500 mA

ELECTRONIC EQUIPMENT:

  • S: On/Off (AC/DC, NOT looping through capable)

  • D: DALI-2/switchDIM/corridorFUNCTION

  • B: Bluetooth-Casambi

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

TECHNICAL DATA

  • Class: I
  • IP: 20
  • Incandescent filament: 650 ºC
  • Luminaire dimensions: 576x50mm
  • Weight: 2.22 Kg
D101_102MDW DP101_102MDW

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
