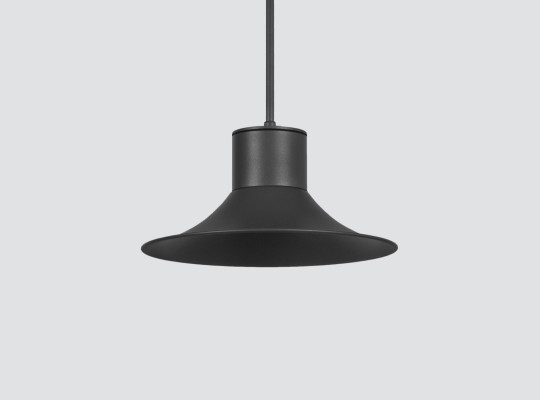

RIGEL OUTDOOR 411RGO.04.00-I2181






Pendant downlights with symmetrical light distribution.
Protection rating against dust and moisture: complete IP65.
COB protected against harmful mechanical impacts: IK10.
Lampshade in diameter 370mm.
Silicone optic to control and direct the light.
Lampshade and aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
Removable lampshade that can be easily replaced with another design or finish.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Temperature resistant silicone rubber gaskets.
IP67 venting valve to reduce condensation.
A4 stainless steel locking screw.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by surface-mounted cylindrical ceiling rose. Delivered with 1 meter painted metal rod treated against corrosion and coated with polyester powder painting.
Pre-wiring of 10 cm wire 3x1mm2.
IP68 connector to be ordered separately [reference F3.A3 (On/Off) / F3.A5 (DALI-2) ].

DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 548lm
- Luminaire efficiency: 110 lm/W
- Light source luminous flux: 870lm
- CRI: >80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 86
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 60.000h L90B10

TECHNICAL DATA
- Class: I
- IP: 65
- Incandescent filament: 750 ºC
- Luminaire diameter: 370mm


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 4,98 W
- Light source power: 4,48 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION

01: RAL9010: Pure White textured

07: RAL9006: White Aluminium textured

04: RAL7016: Anthracite Grey textured

02: RAL9005: Jet Black textured

80: Corten
TECHNICAL DATA
- Class: I
- IP: 65
- Incandescent filament: 750 ºC
- Luminaire diameter: 370mm



01: RAL9010: Pure White textured

07: RAL9006: White Aluminium textured

04: RAL7016: Anthracite Grey textured

02: RAL9005: Jet Black textured

80: Corten
