KIBRI 500 561KBR.14-I2905

CLASS1 IP20 FIL650 +RAL CE

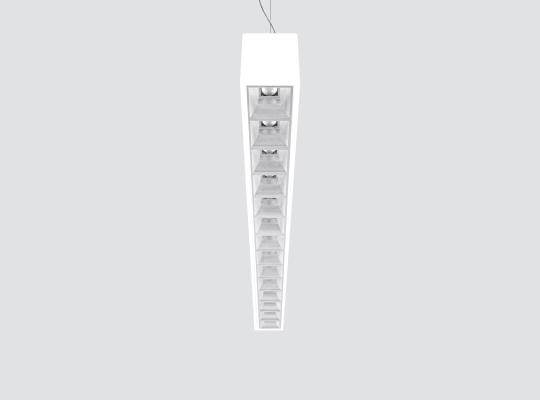

Pendant linear downlights with symmetrical light distribution to achieve an effective task or general lighting.
Two sides light emission: downlight and uplight.Linear fixture in 284mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Metallised modular optics in 14 cells in silvered finish in silvered finish designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, separate switching up and down.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted with adjustable steel wire suspension ( 1m ) and transparent electrical wire. Different suspension length on request.

It is possible to combine different lengths and junction modules in different ways to create customized design.

F5KBR1-14

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 801lm
  • Luminaire efficiency: 96 lm/W
  • Light source luminous flux: 880lm
  • CRI: 90
  • Colour temperature: 2700K
  • Chromaticity Tolerance: MacAdam3
  • Beam angle: 92
  • This product contains a light source of energy efficiency class: D
  • LED reliability at nominal Ta = 25ºC: 90.000h L80B10
  • UGR: <19
No image

TECHNICAL DATA

  • Class: I
  • IP: 20
  • Incandescent filament: 650 ºC
  • Luminaire dimensions: 564x50mm
D5D1KBR DP5D1KBR

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 8,35 W
  • Light source power: 5,6 W
  • Constant current: 150 mA

ELECTRONIC EQUIPMENT:

  • S: On/Off (AC/DC, NOT looping through capable)

  • D: DALI-2/switchDIM/corridorFUNCTION

  • B: Bluetooth-Casambi

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 14: White frame - Silver reflector 14: White frame - Silver reflector

All RAL colours are available under request

TECHNICAL DATA

  • Class: I
  • IP: 20
  • Incandescent filament: 650 ºC
  • Luminaire dimensions: 564x50mm
D5D1KBR DP5D1KBR

STANDARD FINISHES

  • 14: White frame - Silver reflector 14: White frame - Silver reflector

All RAL colours are available under request
