BARIS 600 661BRS.1-I1460

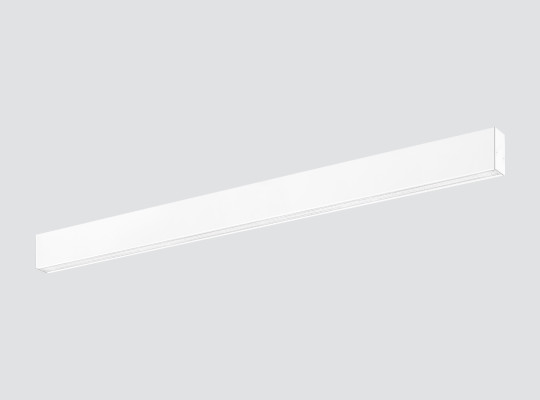

Wall mounted linear fixtures with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixture in 568mm length and in a width of 44mm.
Protection rating against dust and moisture: complete IP54.
Protection rating of resistance to harmful mechanical impacts: IK08.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Microprismatic polycarbonate diffuser.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management.
Accessory for serial installation, reference F3.L6.BRS.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 707lm
- Luminaire efficiency: 100 lm/W
- Light source luminous flux: 1040lm
- CRI: >90 R9 57
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 98 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 100.000h L80B10
UGR: C0º = 20,6 | C90º = 22,6 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 54
- IK: IK08
- Incandescent filament: 650 ºC
- Luminaire dimensions: 568x44mm
- Height: 78 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 7,08 W
- Light source power: 6,4 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 54
- IK: IK08
- Incandescent filament: 650 ºC
- Luminaire dimensions: 568x44mm
- Height: 78 mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
