GOWEL 800 803GWL.1-I1718






Linear fixture in 868mm length and in a width of 70mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling or wall mounted using adjustable supports.
Matching products:
- GOWEL 100 recessed with frame.
- GOWEL 200 frameless recessed.
- GOWEL 300 surface mounted.
- GOWEL 400 pendant.

DOWNLOADS
ACCESSORIES AND FINISHES

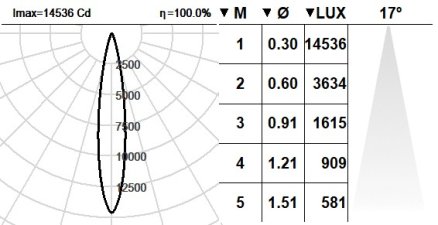

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 2289lm
- Luminaire efficiency: 138 lm/W
- Light source luminous flux: 2515lm
- CRI: 80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 17 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
- Cd/Klm: 6350
UGR: C0º = 16,5 | C90º = 16,5 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25

TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC

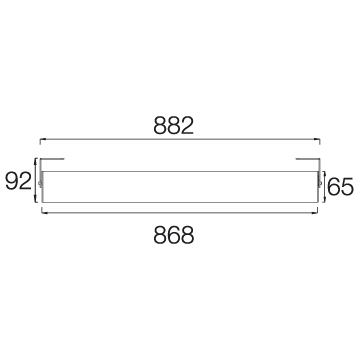

- Luminaire dimensions: 868x70mm
- Height: 65 mm Kg
- Weight: 3.48 Kg


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 16,6 W
- Light source power: 14 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 868x70mm
- Height: 65 mm
- Weight: 3.48 Kg


STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
