HORIZON 800 821HRN.1-I1617
Linear projectors with symmetrical light distribution to achieve an effective task or general lighting.
Frameless linear fixture in 576mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using adjustable supports.
Matching products:
- HORIZON 100 recessed.
- HORIZON 300 surface mounted.
- HORIZON 400 and HORIZON 500 pendant.
- HORIZON 600 and HORIZON 700 wall-mounted.
Luminaire luminous flux: 3560lm
Luminaire connected power: 23,8 W
Luminaire efficiency: 150 lm/W
Light source luminous flux: 3670lm
Light source power: 20 W
mA: 700 mA
Colour temperature: 5000K
Chromaticity Tolerance: MacAdam 3
CRI: 80

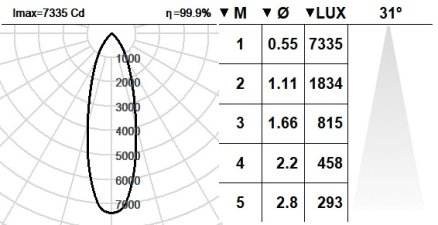

Beam angle: 31
Cd/Klm: 2060
Photobiological risk: 1
This product contains a light source of energy efficiency class: B
LED reliability at nominal Ta = 25ºC: 54.000h L80B10
Class: 1
IP: 20
Incandescent filament: 650
Luminaire dimensions: 576mm x 50mm
Weight: 2.49 Kg
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
