KAUTTA 800 831KTA.1-I1458
Linear fixture in 568mm length and in a width of 44mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
PMMA optics for controlling and directing the light.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling or wall installation with adjustable fixing brackets.
Other options available:
- Recessed.
- Frameless recessed.
- Surface-mounted.
- Pendant.
- Wall-mounted.
Luminaire luminous flux: 1204lm
Luminaire connected power: 7,08 W
Luminaire efficiency: 170 lm/W
Light source luminous flux: 1295lm
Light source power: 6,4 W
mA: 150 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3
CRI: >80

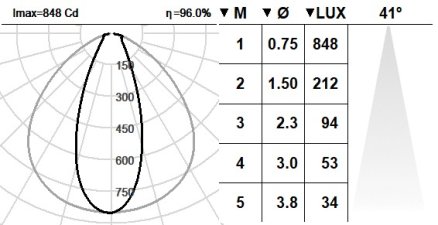

Beam angle: 43
Cd/Klm: 704
This product contains a light source of energy efficiency class: C
LED reliability at nominal Ta = 25ºC: 100.000h L80B10
Class: 1
IP: 40
Incandescent filament: 650
Luminaire dimensions: 568mm x 44mm
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
Downloads
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
