KIBRI 900 959KBR.11-I1255

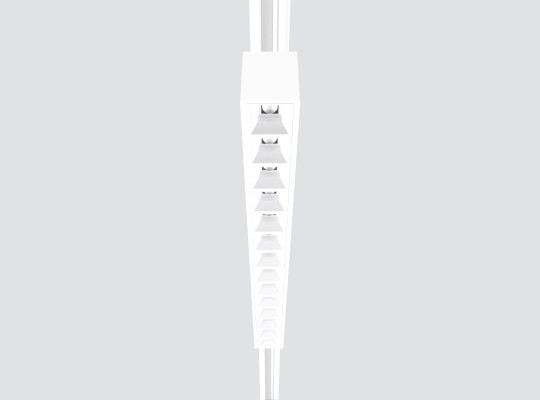

Linear downlights with 3-phase track adapter with symmetrical light distribution to achieve an effective task or general lighting.
Linear fixture in 2804mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
White finish darklight reflector in 70 cells designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management.
Three-phase tracks are available as well as accessories to create a custom system.
Linear fixture in 2804mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
White finish darklight reflector in 70 cells designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤0,4.
Luminaire designed according to ecodesign principles, with replaceable light source and driver, to enable upgrades, ease maintenance and extend the product lifecycle.
Passive temperature management.
Three-phase tracks are available as well as accessories to create a custom system.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 5243lm
- Luminaire efficiency: 150 lm/W
- Light source luminous flux: 5350lm
- CRI: 80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 78 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 2804x50mm
- Height: 69 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 35 W
- Light source power: 28 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
SE: On/Off (AC/DC) + Battery 3h
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM+ 3 hours battery
-
DDE: DALI-2/switchDIM+ 3 hours battery (DALI)
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
11: White frame - white reflector
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 2804x50mm
- Height: 69 mm
STANDARD FINISHES
-
11: White frame - white reflector
All RAL colours are available under request
