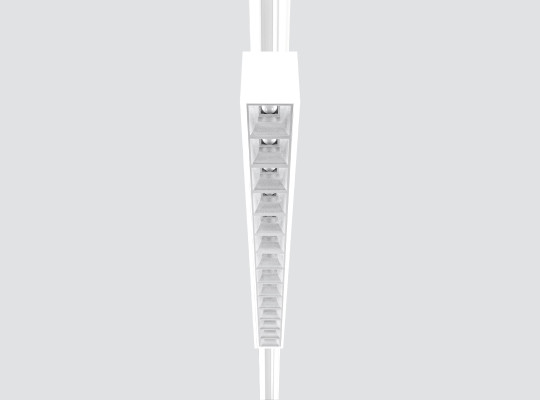

KIBRI 900 959KBR.14-I1255
Linear fixture in 2804mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Metallised darklight reflector in 70 cells in silvered finish in silvered finish designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Three-phase tracks are available as well as accessories to create a custom system.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 5136lm
- Luminaire efficiency: 147 lm/W
- Light source luminous flux: 5350lm
- CRI: 80
- Colour temperature: 3000K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 76 º
- This product contains a light source of energy efficiency class: C
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
UGR: C0º = 20,5 | C90º = 20,4 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 2804x50mm
- Height: 69 mm Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 35 W
- Light source power: 28 W
- Constant current: 150 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
SE: On/Off (AC/DC) + Battery 3h
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM+ 3 hours battery
-
DDE: DALI-2/switchDIM+ 3 hours battery (DALI)
-
B: Bluetooth-Casambi
STANDARD FINISHES
-
14: White frame - Silver reflector
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 20
- Incandescent filament: 650 ºC
- Luminaire dimensions: 2804x50mm
- Height: 69 mm
STANDARD FINISHES
-
14: White frame - Silver reflector
All RAL colours are available under request
