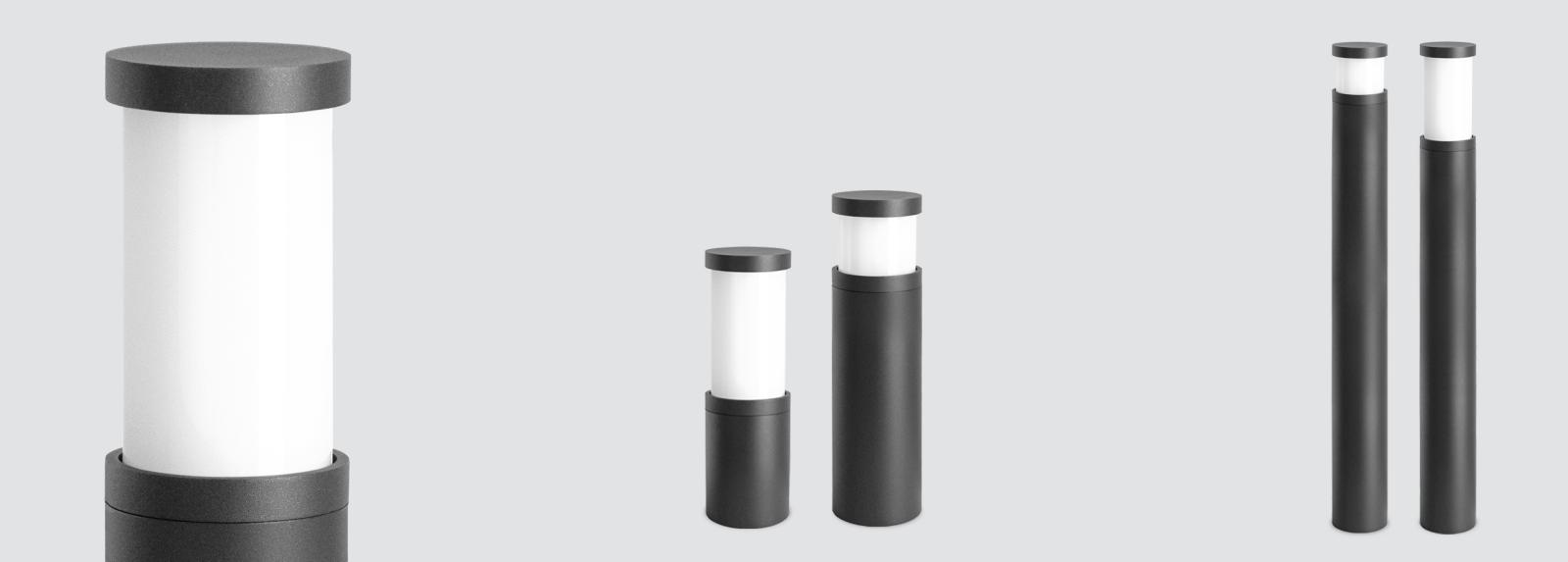

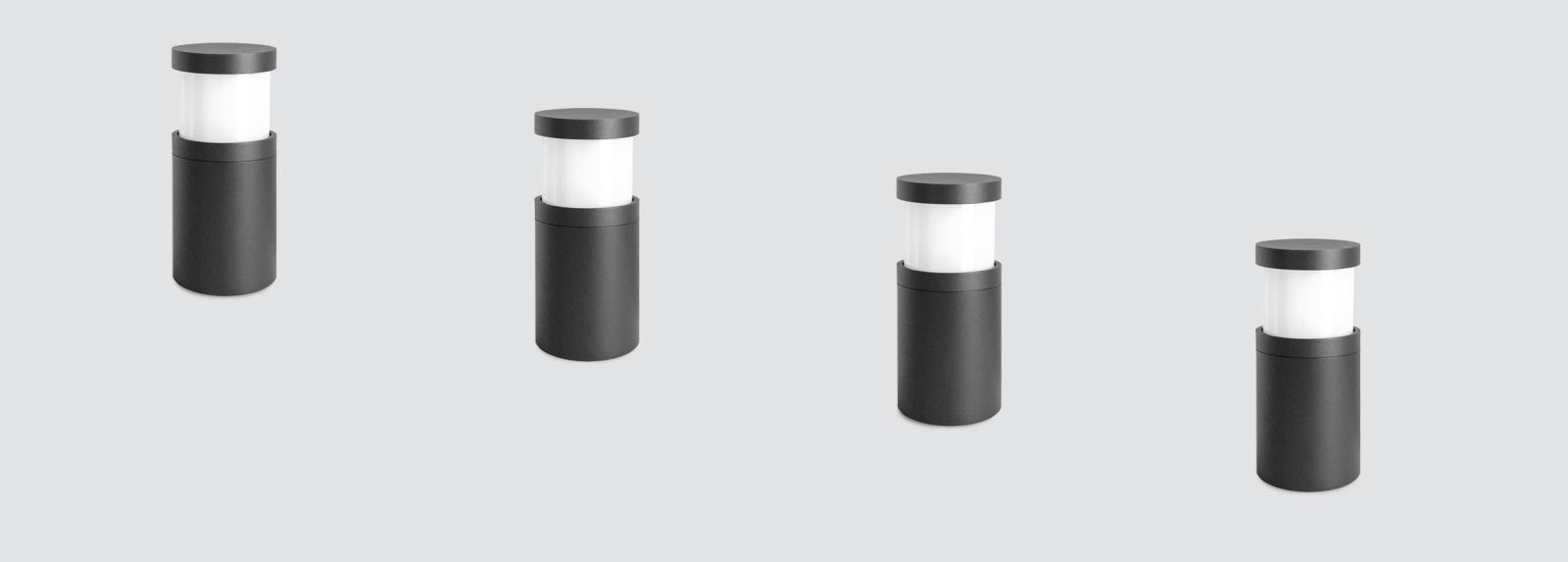

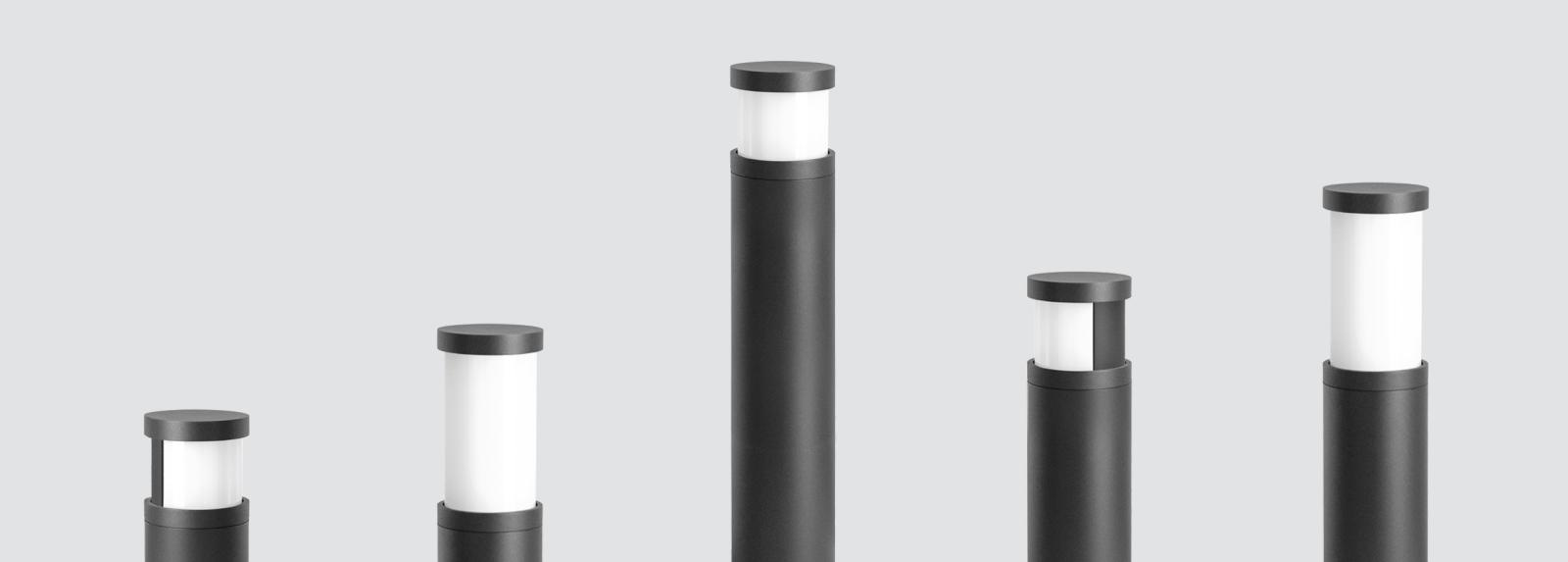

UNEDO 100 | IP66 bollards with opal diffuser

UNEDO 100 | IP66 bollards with opal diffuser

Bollard with 360º light emission, radial beam.
Bollard head with a diameter of 110mm or 140mm.

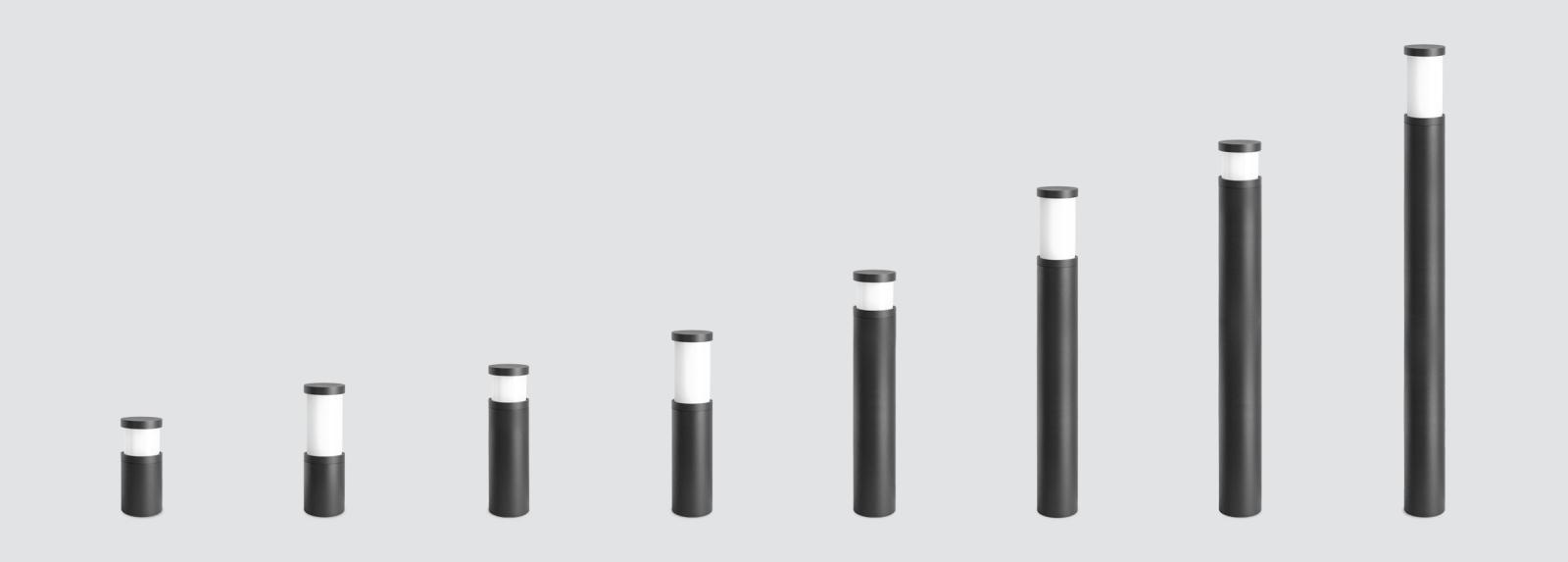

Available in 4 heights.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK06 or IK10 depending on the diffuser.
Die-cast aluminium body and top cover treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
Extruded aluminium tube with corrosion resistance treatment and finish according to the head finish.
7mm opal borosilicate glass or 5mm extruded polycarbonate diffuser made by resins UV stabilized rays with opal finish.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately.

PRODUKT KONFIGURATOR

EINSTELLBAR

Außendurchmesser

Höhe

IK

Farbtemperatur

CRI

Leuchten Lichtstrom

Winkel

Diffusor

Watt

Elektronische Ausrüstung

SUCHERGEBNISSE

Winkel
Article
Watt
Leuchten Lichtstrom
CRI
Ähnlichste Farbtemperatu
Außendurchmesser
Einbautiefe
F160_170UND
360  360
160UND.4-I1187
6.44W
154lm
90
2700K
140mm
239mm
F160_170UND
360  360
160UND.4-I1188
6.44W
197lm
80
3000K
140mm
239mm
F160_170UND
360  360
160UND.4-I1189
6.44W
207lm
80
4000K
140mm
239mm
F160_170UND
360  360
160UND.4-I1190
11.53W
196lm
90
2700K
140mm
239mm
F160_170UND
360  360
160UND.4-I1191
11.53W
337lm
80
3000K
140mm
239mm
F160_170UND
360  360
160UND.4-I1192
11.53W
354lm
80
4000K
140mm
239mm
F160_170UND
360  360
160UND.4-I1193
16.84W
368lm
90
2700K
140mm
239mm
F160_170UND
360  360
160UND.4-I1194
16.84W
469lm
80
3000K
140mm
239mm
F160_170UND
360  360
160UND.4-I1195
16.84W
492lm
80
4000K
140mm
239mm
F162UND_172UND
360  360
162UND.4-I1187
6.44W
154lm
90
2700K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1188
6.44W
197lm
80
3000K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1189
6.44W
207lm
80
4000K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1190
11.53W
196lm
90
2700K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1191
11.53W
337lm
80
3000K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1192
11.53W
354lm
80
4000K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1193
16.84W
368lm
90
2700K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1194
16.84W
469lm
80
3000K
140mm
439mm
F162UND_172UND
360  360
162UND.4-I1195
16.84W
492lm
80
4000K
140mm
439mm
F160_170UND
360  360
170UND.4-I1187
6.44W
154lm
90
2700K
140mm
239mm
F160_170UND
360  360
170UND.4-I1188
6.44W
197lm
80
3000K
140mm
239mm
