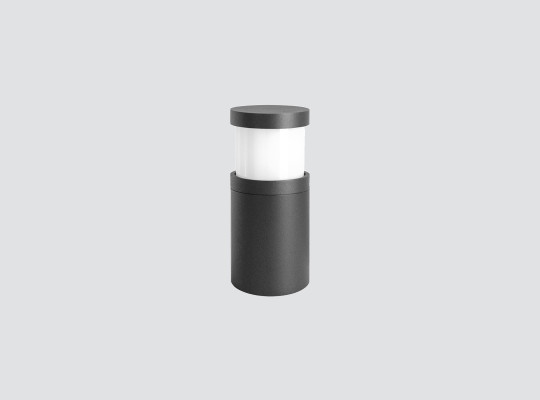

UNEDO 100 120UND.4-I1173
Bollard head with a diameter of 140mm.
Bollard height : 300mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK06.
Die-cast aluminium body and top cover made of die-cast aluminium and extruded aluminium tube coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
7mm opal borosilicate glass.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Silicone gasket.
Anticondensation device.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Mounting base supplied with the fixture.
Accessory for installation in concrete reference F3.P1.BLD
Accessory for installation in grass reference F3.O1.BLD
Lichtquelle Lichtstrom: 1074lm
Leuchten Lichtstrom: 473lm
Leuchten Lichtausbeute: 68 lm/W
Lichtquelle Watt: 7 W
Leuchten Watt: 7 W
mA: 350 mA
Ähnlichste Farbtemperatu: 1795K
Farborttoleranz: MacAdam 4
CRI: 55
Winkel: 360
Photobiologisches Risiko: 1
Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: consult
Mittlere Bemessungslebensdauer: 52000h L80B50
Klasse: 1
IP: 66
IK: IK06
Glühdraht: 850
Außendurchmesser: 140mm
Gewicht: 3.56 Kg
Elektronisches Zubehör:
S: On/Off
D: DALI-2/switchDIM/corridorFUNCTION
-
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
