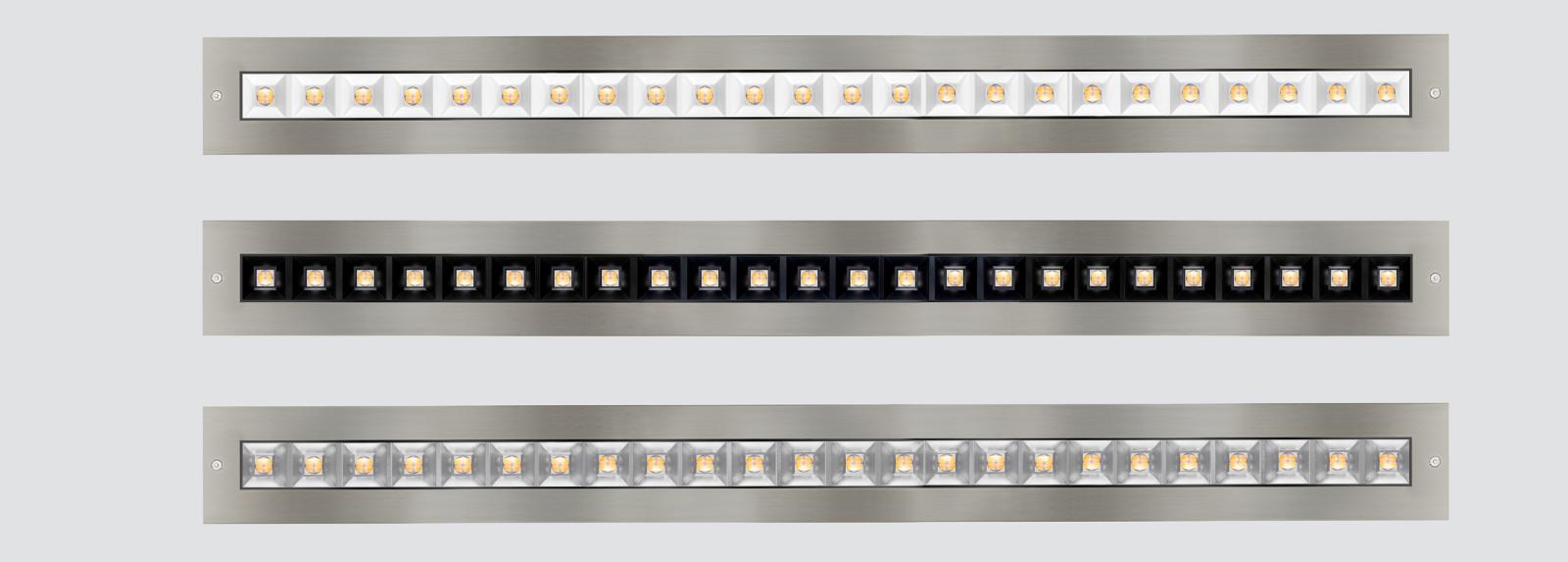

Buried linear uplights with symmetrical light distribution.
Linear fixtures available in 4 lengths 620mm, 900mm, 1180mm and 1460mm in a width of 95mm and in a depth of 123mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant black painted extruded aluminium profile with C5-M special coating for environments with very high corrosivity.
316L stainless steel marine grade frame.
10 mm protection clear glass as standard, frosted glass unde request.
Metallised modular optics designed to ensure visual comfort.
Highly efficient linear printed circuit board.
Built-in driver.
Floor installation with two fixing points. Insertion box supplied with the lighting fixture.
Cable inlet hole on one side of the back of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.
Suggested applications: outdoor spaces: gardens, parks, pathways that may be affected by temporary flooding. Interior spaces in shopping malls, hotel and building entrances, cinemas, car parks, mechanical workshops, showrooms and similar installations. Suitable for installation in concrete, pavement and lawn.
