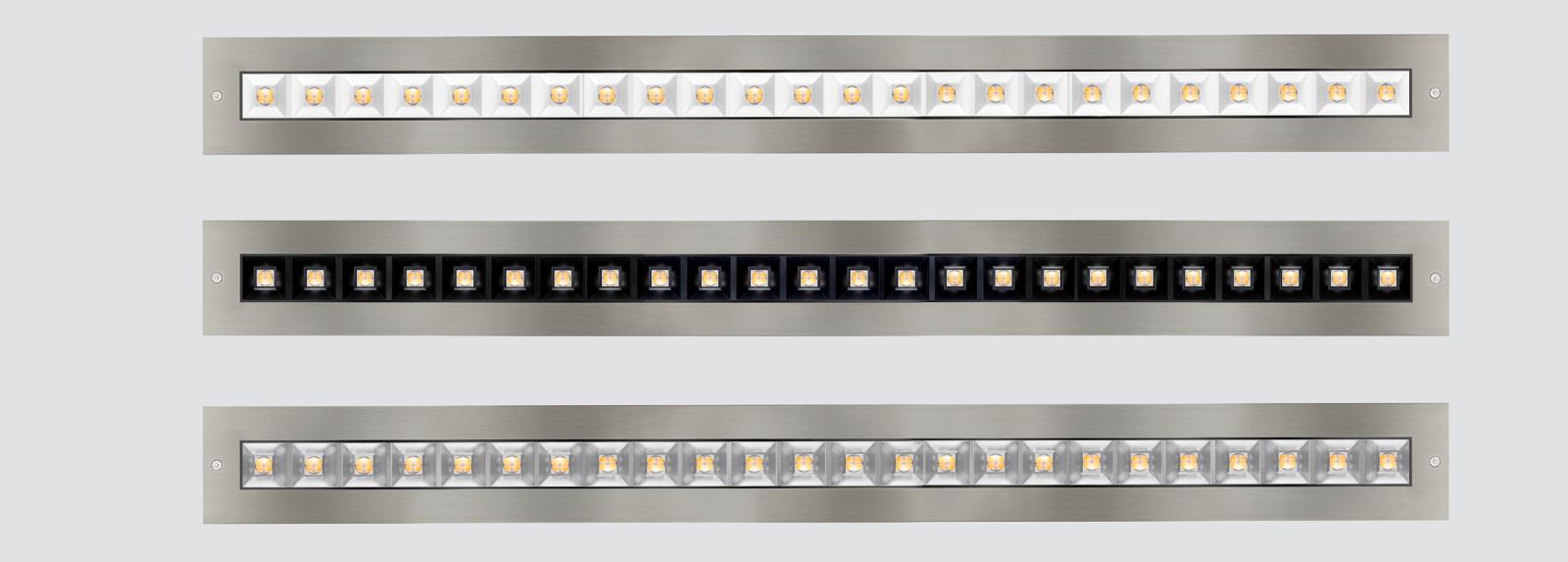

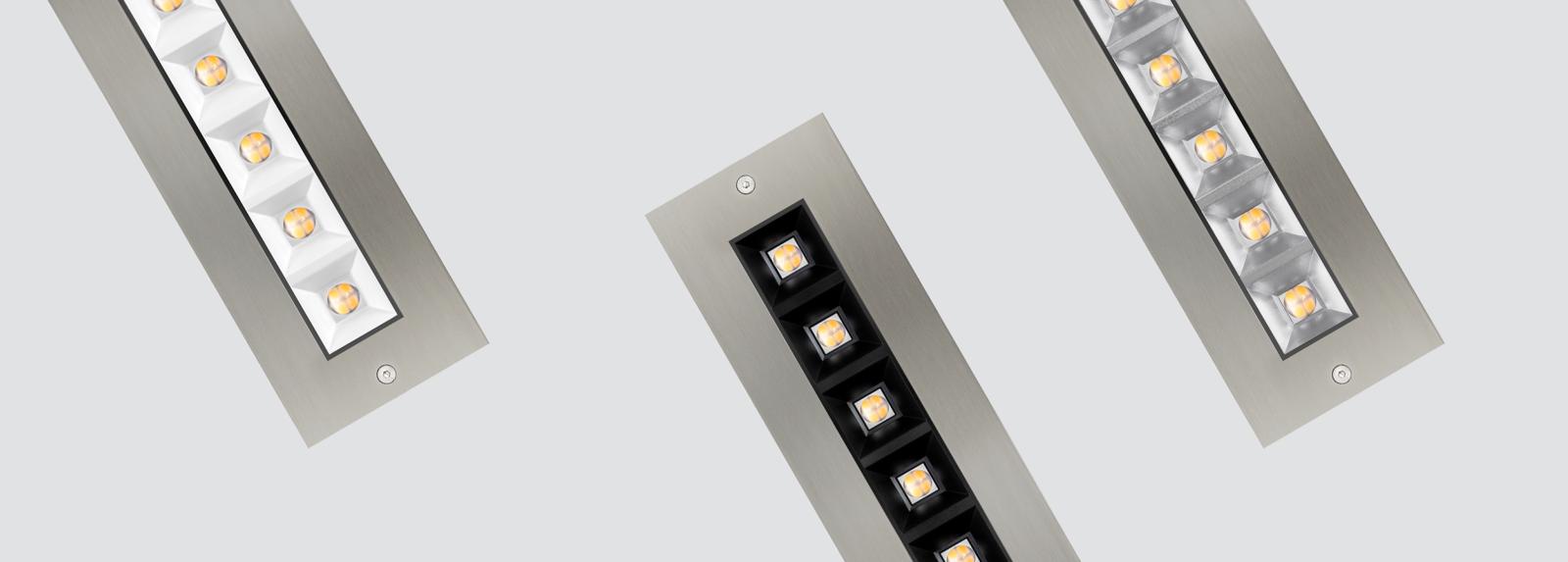

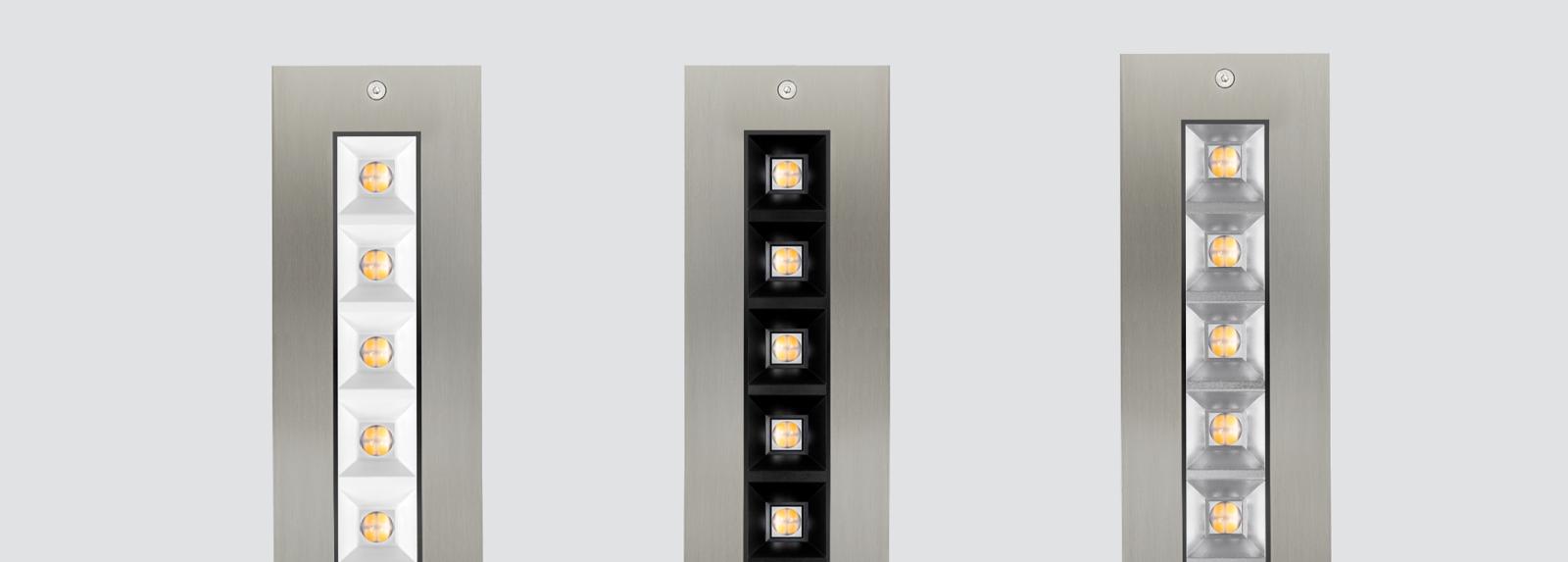

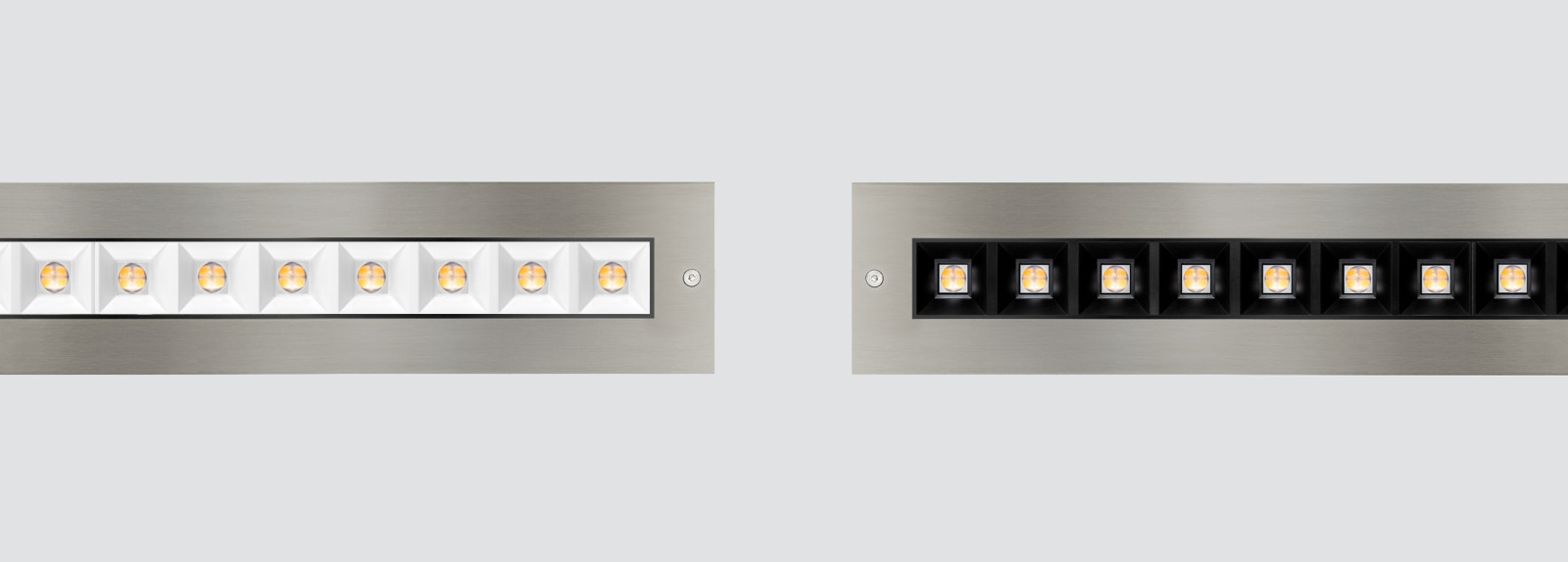

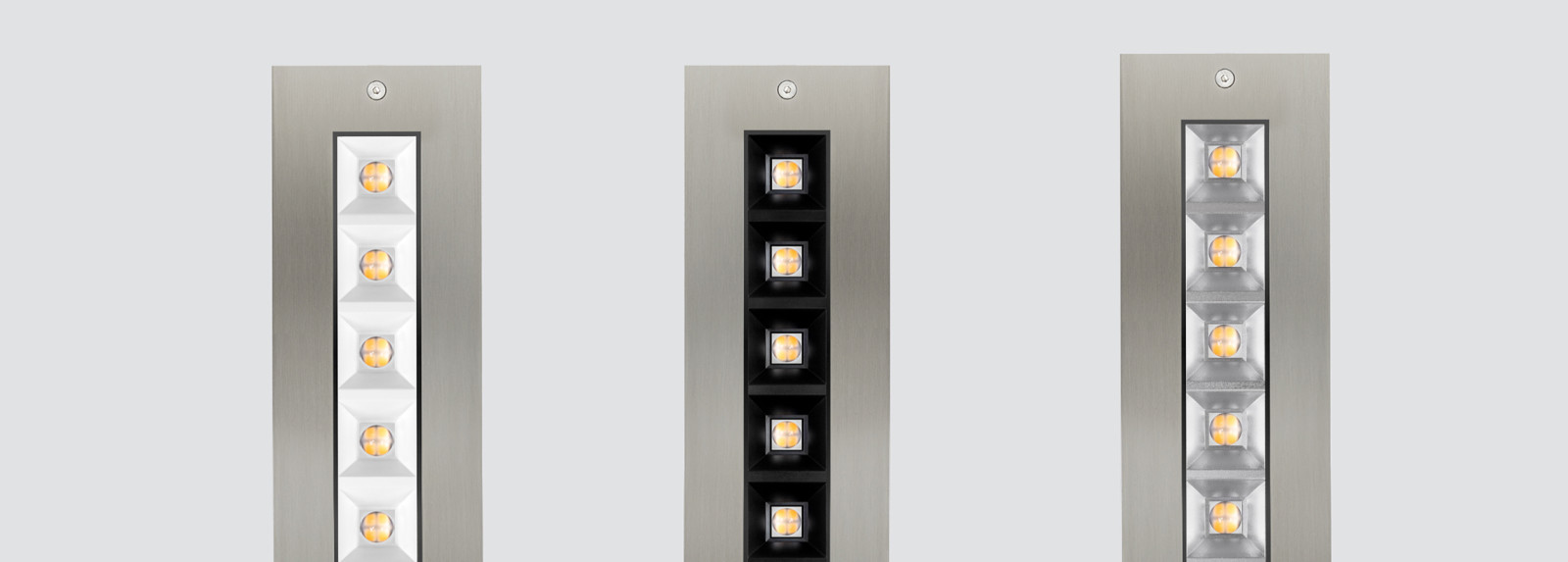

ARVIA | IP67 Inground buried uplights

ARVIA | IP67 Inground buried uplights

Buried linear uplights with symmetrical light distribution.

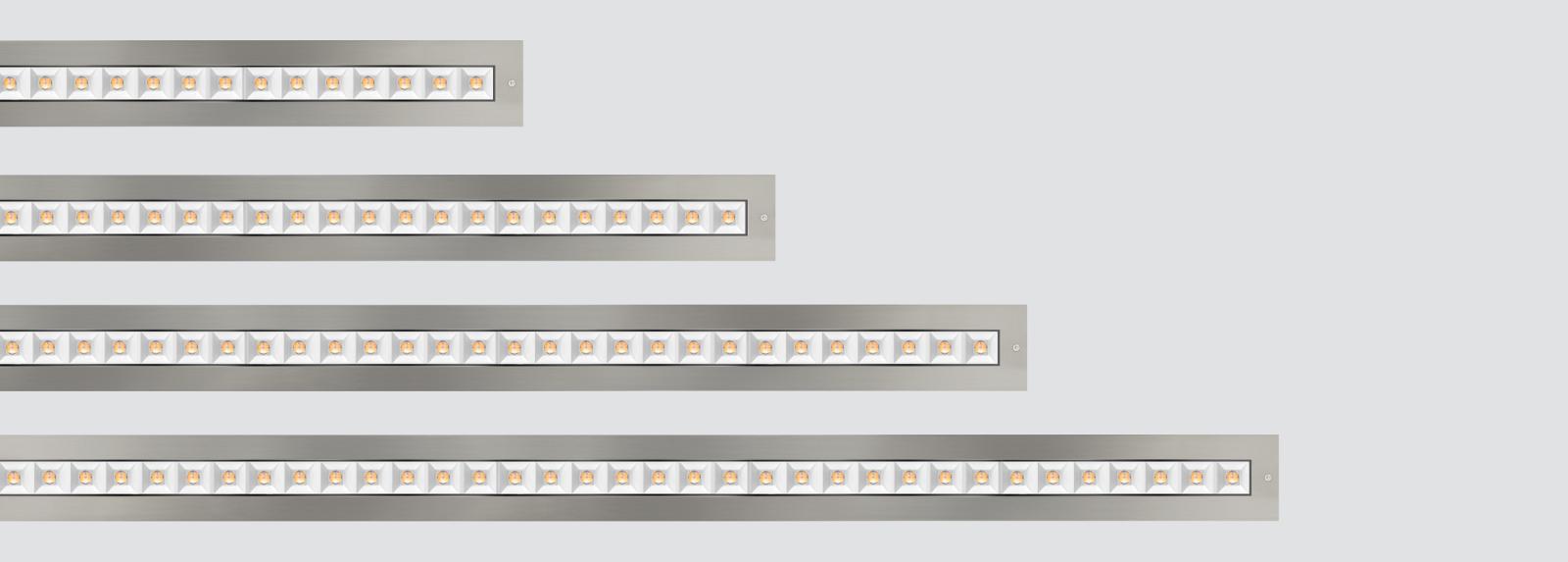

Linear fixtures available in 4 lengths 620mm, 900mm, 1180mm and 1460mm in a width of 95mm and in a depth of 123mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant black painted extruded aluminium profile with C5-M special coating for environments with very high corrosivity.
316L stainless steel marine grade frame.
10 mm protection clear glass as standard, frosted glass unde request.
Metallised modular optics designed to ensure visual comfort.
Highly efficient linear printed circuit board.
Built-in driver.
Floor installation with two fixing points. Insertion box supplied with the lighting fixture.
Cable inlet hole on one side of the back of the light fixture. Can also be supplied with two cable inlets, one on each side for serial installation.
Passive temperature management.

Suggested applications: outdoor spaces: gardens, parks, pathways that may be affected by temporary flooding. Interior spaces in shopping malls, hotel and building entrances, cinemas, car parks, mechanical workshops, showrooms and similar installations. Suitable for installation in concrete, pavement and lawn.

PRODUCT CONFIGURATOR

Tilt

Recessed dimensions

Outer dimensions

Height

Color Temperature

CRI

Luminous flux of the fixture

Diffuser

Power

mA

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Embedding dimensions
Outer dimensions
Height
FARV.81
gen_uplight5
161ARV.81-I2905
5,6W
546lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.82
gen_uplight5
151ARV.82-I2905
5,6W
537lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
151ARV.81-I1215
5,6W
717lm
80
3000K
605mm x 91mm
620mm x 95mm
123cm
FARV.84
gen_uplight5
151ARV.84-I1215
5,6W
728lm
80
3000K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
151ARV.81-I2905
5,6W
590lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.84
gen_uplight5
151ARV.84-I2905
5,6W
598lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
161ARV.81-I1215
5,6W
663lm
80
3000K
605mm x 91mm
620mm x 95mm
123cm
FARV.82
gen_uplight5
161ARV.82-I1220
9,4W
1047lm
80
4000K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
151ARV.81-I2907
9,4W
965lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.84
gen_uplight5
151ARV.84-I1216
5,6W
775lm
80
4000K
605mm x 91mm
620mm x 95mm
123cm
FARV.84
gen_uplight5
151ARV.84-I2907
9,4W
979lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
161ARV.81-I1216
5,6W
707lm
80
4000K
605mm x 91mm
620mm x 95mm
123cm
FARV.82
gen_uplight5
151ARV.82-I2907
9,4W
878lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
151ARV.81-I1216
5,6W
764lm
80
4000K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
161ARV.81-I2906
7,4W
719lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.82
gen_uplight5
161ARV.82-I1221
13,4W
1378lm
80
3000K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
151ARV.81-I2906
7,4W
777lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.84
gen_uplight5
151ARV.84-I1217
7,4W
966lm
80
3000K
605mm x 91mm
620mm x 95mm
123cm
FARV.82
gen_uplight5
151ARV.82-I2906
7,4W
708lm
90
2700K
605mm x 91mm
620mm x 95mm
123cm
FARV.81
gen_uplight5
151ARV.81-I1217
7,4W
951lm
80
3000K
605mm x 91mm
620mm x 95mm
123cm
