UNEDO 100 133UND.4-I1173

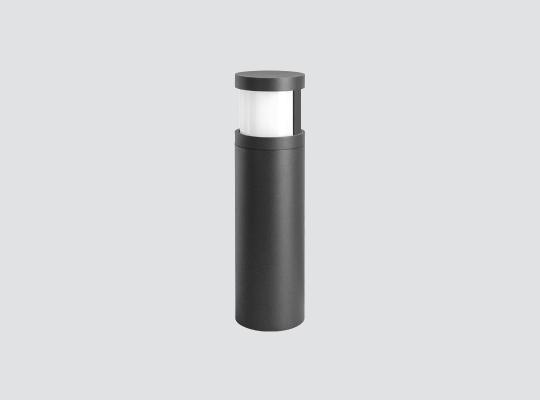

Bollard with 180º light emission.
Bollard head with a diameter of 140mm.
Bollard height : 500mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Die-cast aluminium body and top cover made of die-cast aluminium and extruded aluminium tube coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
5mm extruded polycarbonate diffuser made by resins UV stabilized. Opal finish.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Silicone gasket.
IP67 breathing valve to reduce condensation.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI-2).
Mounting base supplied with the fixture.
Accessory for installation in concretereference F3.P1.BLD
Accessory for installation in grass reference F3.O1.BLD
Bollard head with a diameter of 140mm.
Bollard height : 500mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Die-cast aluminium body and top cover made of die-cast aluminium and extruded aluminium tube coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
5mm extruded polycarbonate diffuser made by resins UV stabilized. Opal finish.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screw.
Silicone gasket.
IP67 breathing valve to reduce condensation.
PCB on the top of the fixture.
Built-in driver included.
Electronic options for light control : DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Pre-wiring with 25cm of 3x1mm2 cable.
Double cable gland entry for installation in series.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI-2).
Mounting base supplied with the fixture.
Accessory for installation in concretereference F3.P1.BLD
Accessory for installation in grass reference F3.O1.BLD
DESCARGAS
ACCESORIOS Y ACABADOS
CARACTERÍSTICAS FOTOMÉTRICAS
- Lichtquelle Lichtstrom: 1074lm
- CRI: 55
- Ähnlichste Farbtemperatu: 1795K
- Farborttoleranz: MacAdam 3
- Winkel: 180 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: A++
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 52000h L80B50
DATOS TÉCNICOS
- Klasse: I
- IP: 66
- Glühdraht: 850 ºC
- Außendurchmesser: 140mm
- Höhe: 500 mm Kg
- Gewicht: 4.16 Kg
CARACTERÍSTICAS ELÉCTRICAS
- Leuchten Anschlussleistung: 7 W
- Lichtquelle Watt: 7 W
- mA: 350 mA
ELEKTRONISCHE AUSRÜSTUNG:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi [ 5m ]
Actualizable, sustituible, reparable
ACABADOS ESTÁNDARES
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
DATOS TÉCNICOS
- Klasse: I
- IP: 66
- Glühdraht: 850 ºC
- Außendurchmesser: 140mm
- Höhe: 500 mm
- Gewicht: 4.16 Kg
ACABADOS ESTÁNDARES
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
