PONTIS 150PNT.4.01-I1430
Luminaire height 300mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Pre-wiring of 15cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Sturdy base accessory to ensure high stability in public space F3.2.TRPN.
Leuchten Lichtstrom: 293lm
Leuchten Anschlussleistung: 5,7 W
Leuchten Lichtausbeute: 51 lm/W
Lichtquelle Lichtstrom: 610lm
Lichtquelle Watt: 3,2 W
mA: 150 mA
Ähnlichste Farbtemperatu: 4000K
Farborttoleranz: MacAdam 3
CRI: >80

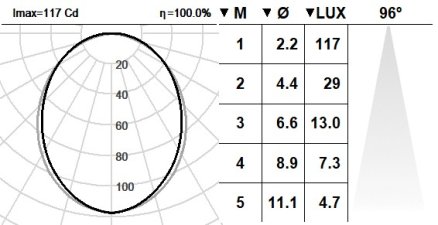

Winkel: 96
Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 100.000h L80B10
Klasse: 1
IP: 66
IK: 10
Glühdraht: 850
Außenabmessungen: 427x62mm
Elektronisches Zubehör:
S: On/Off
D: DALI-2/switchDIM
B: Bluetooth-Casambi [ 15m ]
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
Descargas
-
80 Corten -
90 : RAL6005 Moogrün -
7: RAL9006: Weißaluminium -
4: RAL7016: Anthrazitgrau -
2: RAL9005: Tiefschwarz -
1: RAL9010: Reinweiß
Todos los colores RAL están disponibles bajo pedido.
