96
3,2W
293lm
>80
2700K
427x62mm
300mm

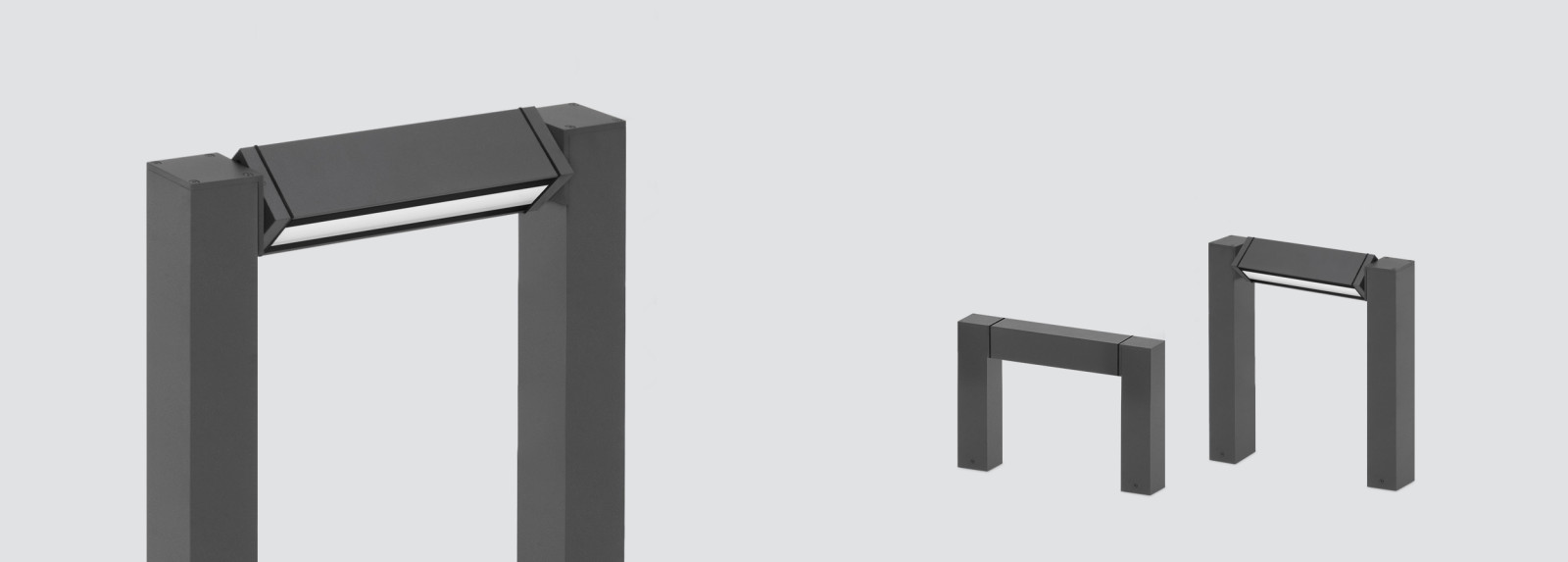

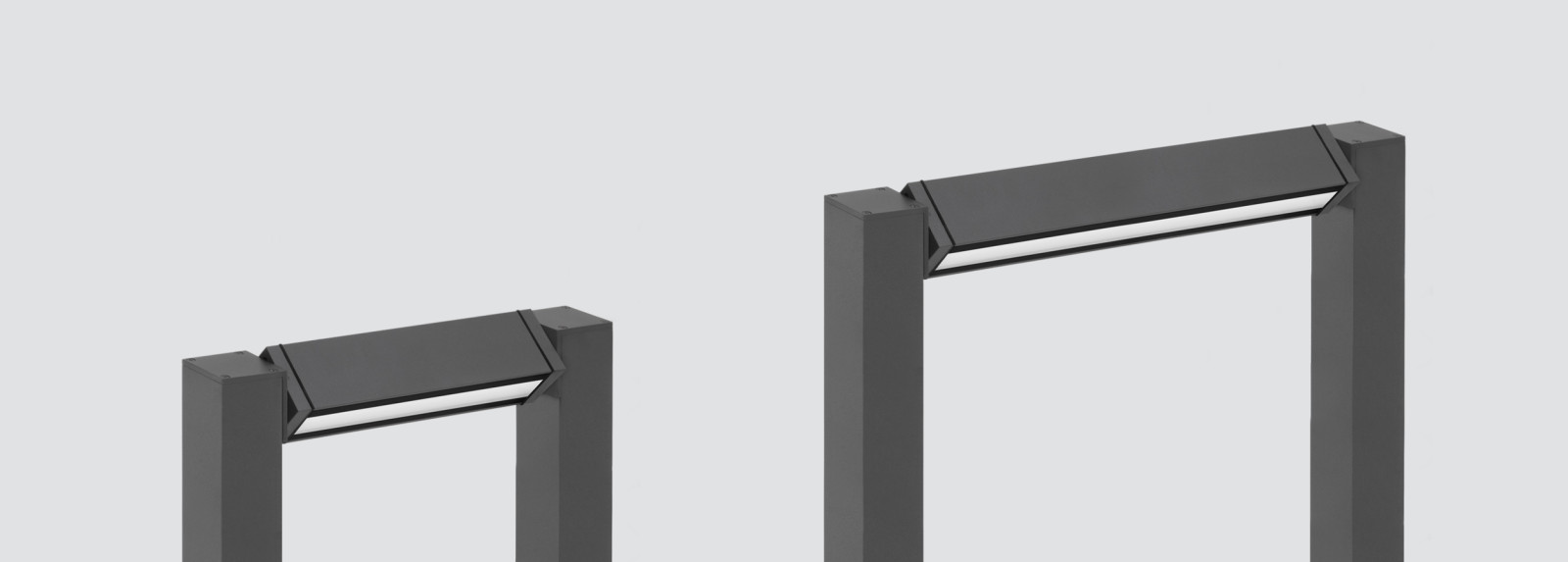

PONTIS |IP66 IK10 Lighting structure for ground illumination
Lighting structure with rectilinear design for ground illumination with symmetrical light distribution.

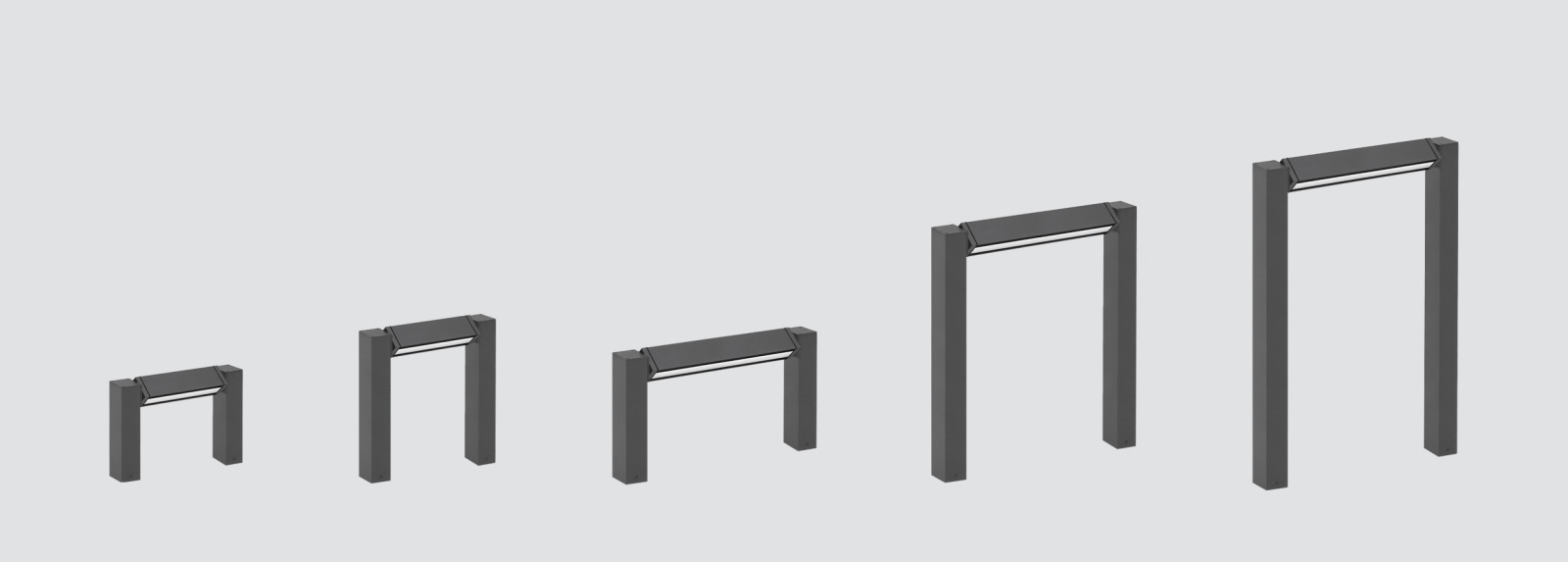

Available in 4 heights: 300mm, 450mm, 700mm and 900mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior equipped with an opal diffuser or optics for a controlled light beam.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
Electronic options for light control : DALI-2 or Bluetooth.
IP68 connector not included, it can be ordered separately.

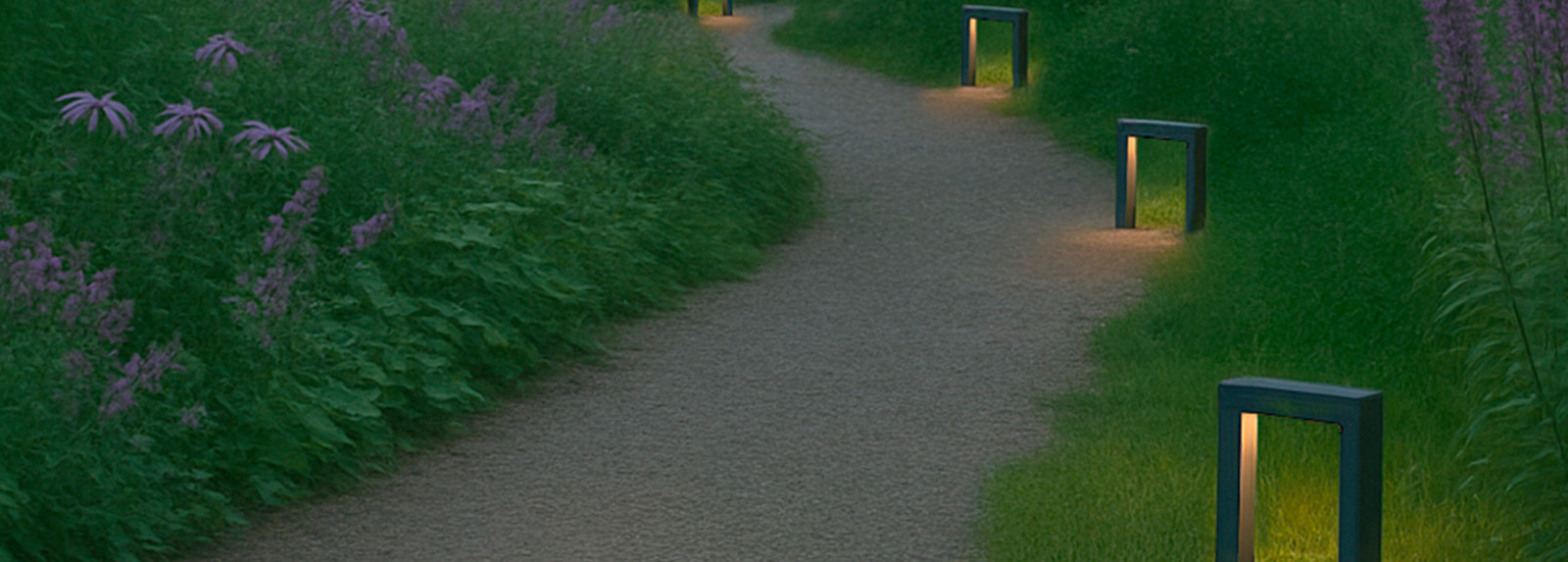

Mounting plate for floor installation supplied with the fixture.Recommended applications: walkways, landscaped areas, and squares. Ideal for contemporary architectural environments.
PRODUKT KONFIGURATOR
SUCHERGEBNISSE
Winkel
Article
Watt
Leuchten Lichtstrom
CRI
Ähnlichste Farbtemperatu
Außenabmessungen
Einbautiefe
