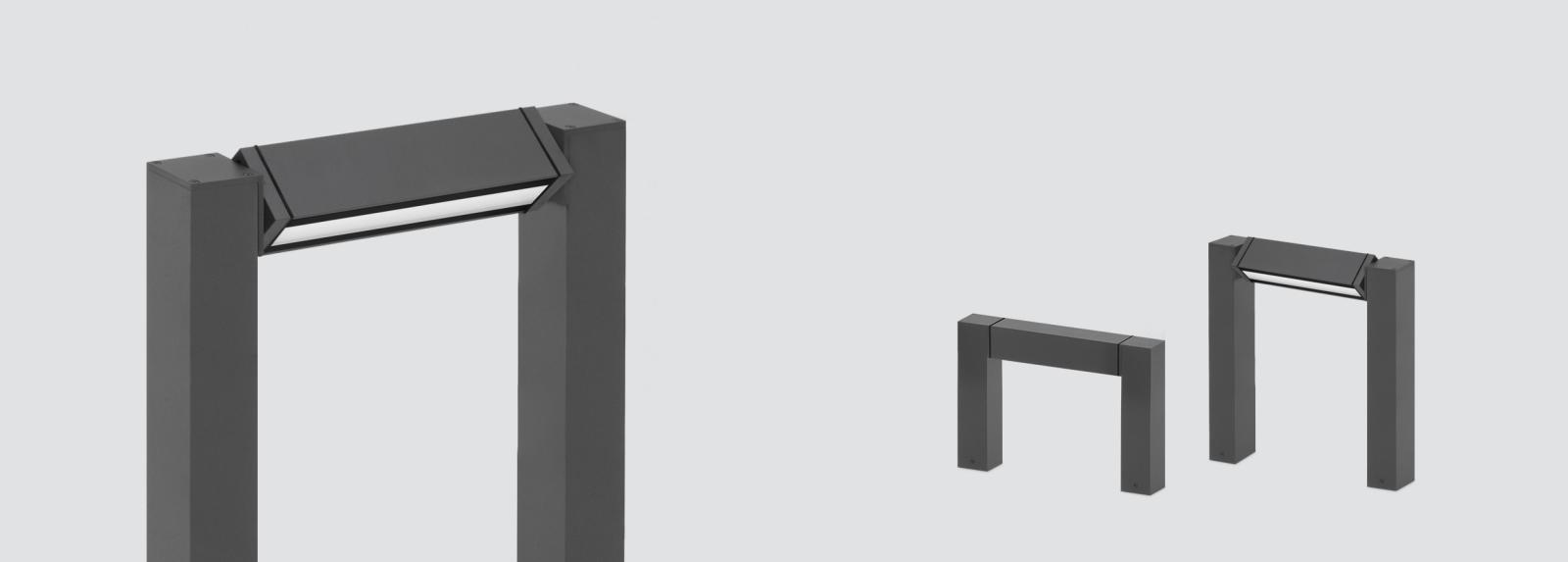

PONTIS | IP66 IK10 Lighting structure for ground illumination

PONTIS | IP66 IK10 Lighting structure for ground illumination

Lighting structure with rectilinear design for ground illumination with symmetrical and asymmetrical light distribution.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Available in fix and adjustable 180º + 180º versions.

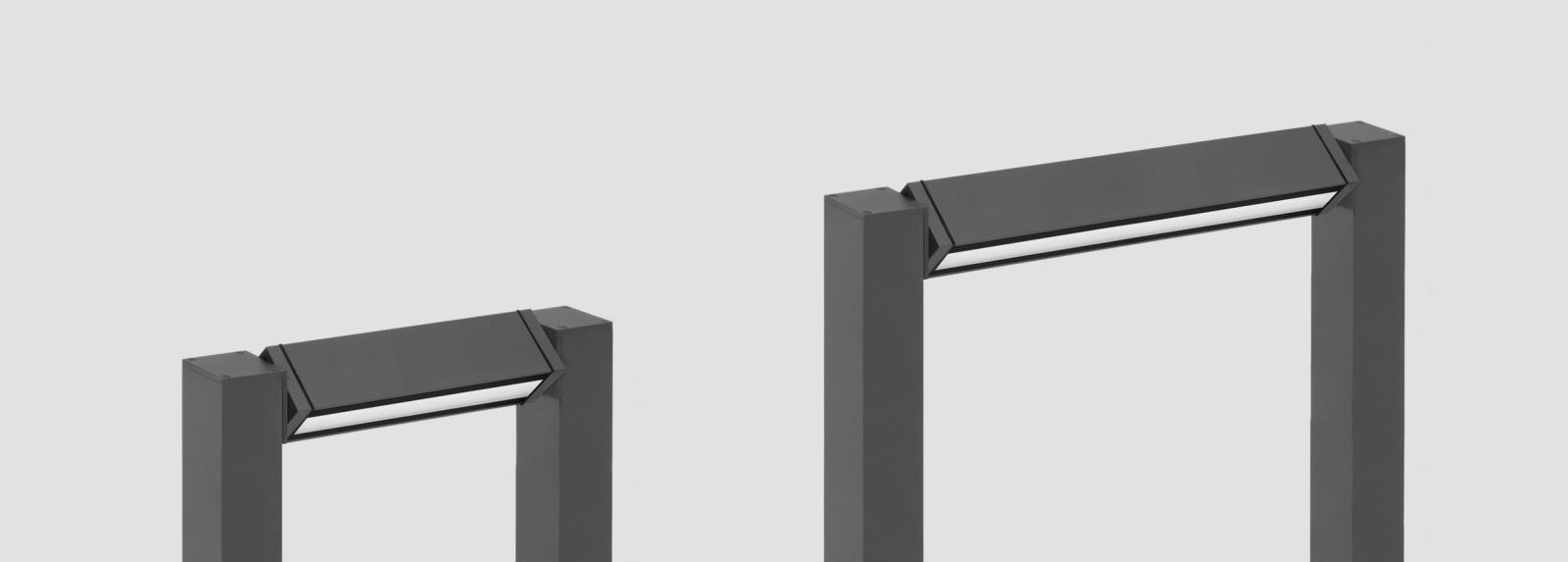

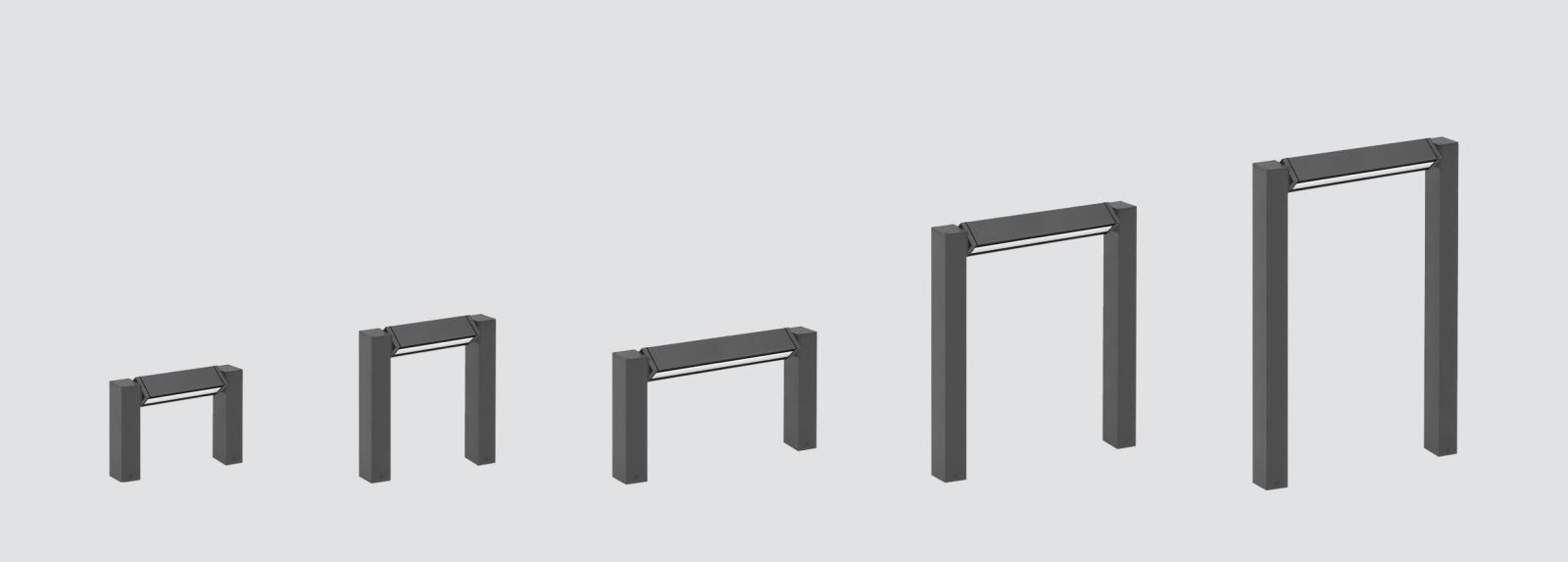

Available in 5 heights: 300mm, 350mm, 450mm, 700mm and 900mm.
Extruded aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior equipped with an opal diffuser or optics for a controlled light beam.
IP67 venting valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
Electronic options for light control : DALI-2 or Bluetooth.
IP68 connector not included, it can be ordered separately.
Mounting plate for floor installation supplied with the fixture.

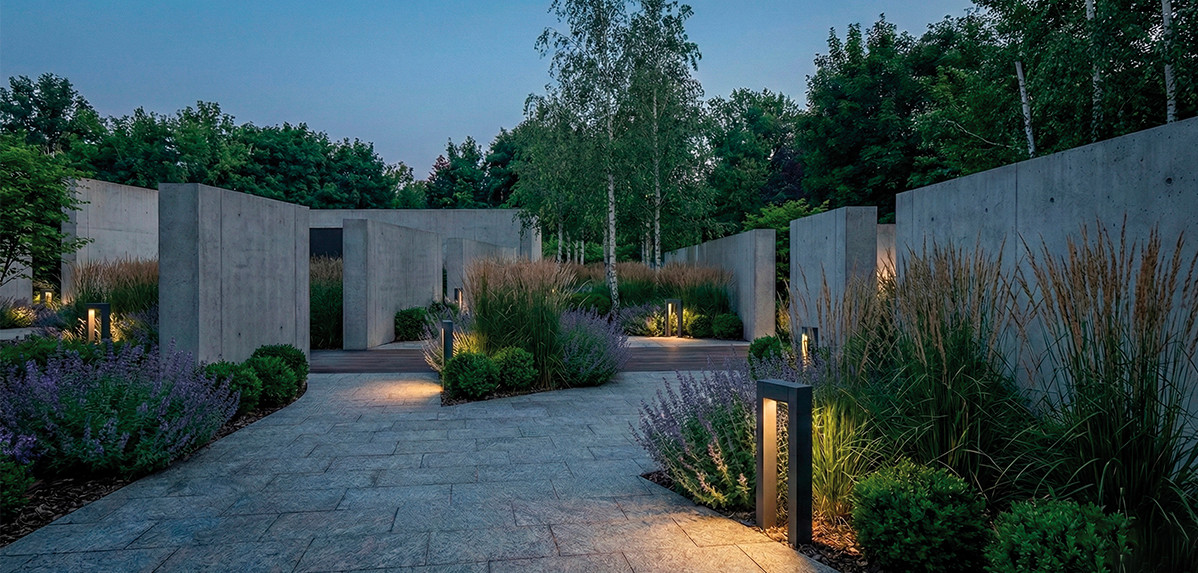

Suggested applications : walkways, garden areas, plazas. Ideal for contemporary architectural spaces.

PRODUCT CONFIGURATOR

Tilt

Outer dimensions

Height

Color Temperature

CRI

Luminous flux of the fixture

Beam angle

Reflector

Power

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1428
3,2W
293lm
>80
2700K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1429
3,2W
293lm
>80
3000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1430
3,2W
293lm
>80
4000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1431
3,2W
310lm
>80
5000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1436
5,41W
480lm
>80
3000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1435
5,41W
480lm
>80
2700K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1437
5,41W
509lm
>80
4000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1438
5,41W
504lm
>80
5000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1442
7,7W
667lm
>80
2700K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1444
7,7W
703lm
>80
4000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1443
7,7W
662lm
>80
3000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1445
7,7W
698lm
>80
5000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1449
10,04W
840lm
>80
2700K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1450
10,04W
835lm
>80
3000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1451
10,04W
886lm
>80
4000K
427x62mm
300mm
F1X0PNT
gen_downlight5  96
150PNT.4.01-I1452
10,04W
881lm
>80
5000K
427x62mm
300mm
F1X0PNT
DWW_downlight  DASY
190PNT.4.01-I1428
3,2W
506lm
>80
2700K
427x62mm
300mm
F1X0PNT
DWW_downlight  DASY
190PNT.4.01-I1430
3,2W
506lm
>80
4000K
427x62mm
300mm
F1X0PNT
DWW_downlight  DASY
190PNT.4.01-I1431
3,2W
535lm
>80
5000K
427x62mm
300mm
F1X0PNT
DWW_downlight  DASY
190PNT.4.01-I1429
3,2W
506lm
>80
3000K
427x62mm
300mm
