HORIZON 900 921HRN.1-I1612

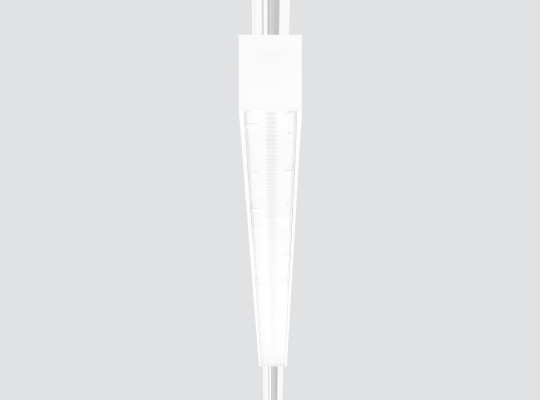

Linear fixture in 576mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of PMMA optics to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2 und Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Three-phase tracks are available as well as accessories to create a custom system.
DOWNLOADS
ZUBEHÖR UND OBERFLÄCHEN
PHOTOMETRISCHE DATEN
- Leuchten Lichtstrom: 2430lm
- Leuchten Lichtausbeute: 143 lm/W
- Lichtquelle Lichtstrom: 2505lm
- CRI: 80
- Ähnlichste Farbtemperatu: 3000K
- Farborttoleranz: MacAdam 3
- Winkel: 31 º
- Dieses Produkt enthält eine Lichtquelle der Energieeffizienzklasse: C
- Bemessene Lebensdauer der LEDs bei Ta = 25ºC: 54.000h L80B10
- Cd/Klm: 2060
UGR: C0º = 18,1 | C90º = 18,1 unter den unten angegebenen Parametern
Raumabmessungen X=4H/Y=8H
Reflexion 20% | 50% | 70%
Leuchtenabstandes = 0.25
TECHNISCHE DATEN
- Klasse: I
- IP: 20
- Glühdraht: 650 ºC
- Außenabmessungen: 576x50mm
- Höhe: 65 mm Kg
- Gewicht: 2,22 Kg
ELEKTRISCHE DATEN
- Leuchten Anschlussleistung: 17 W
- Lichtquelle Watt: 13,8 W
- mA: 500 mA
ELEKTRONISCHE DATEN:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
STANDARDAUSFÜHRUNGEN
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Alle RAL-Farben sind auf Anfrage erhältlich
TECHNISCHE DATEN
- Klasse: I
- IP: 20
- Glühdraht: 650 ºC
- Außenabmessungen: 576x50mm
- Höhe: 65 mm
- Gewicht: 2,22 Kg
STANDARDAUSFÜHRUNGEN
-
1: RAL9010: Reinweiß -
2: RAL9005: Tiefschwarz -
4: RAL7016: Anthrazitgrau -
7: RAL9006: Weißaluminium
Alle RAL-Farben sind auf Anfrage erhältlich
