KIBRI 200

KIBRI 200

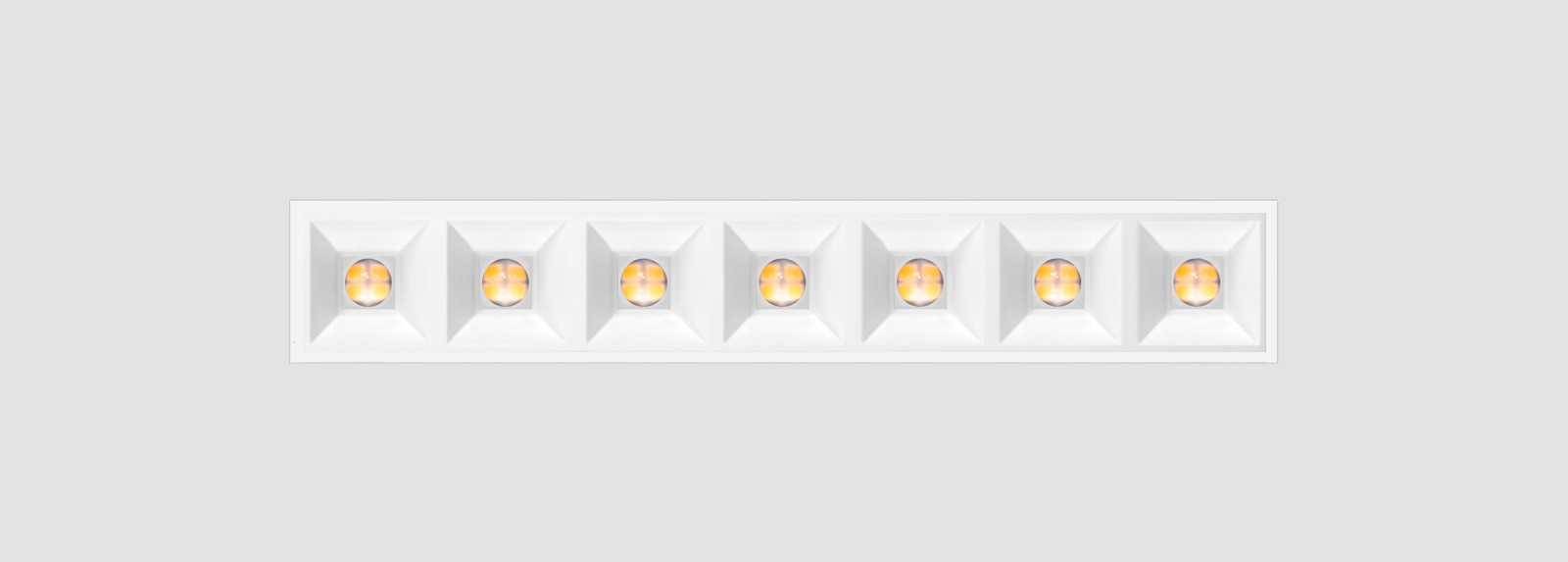

Ceiling mounted recessed linear fixtures with symmetrical light distribution to achieve an effective task, ambient or general lighting.

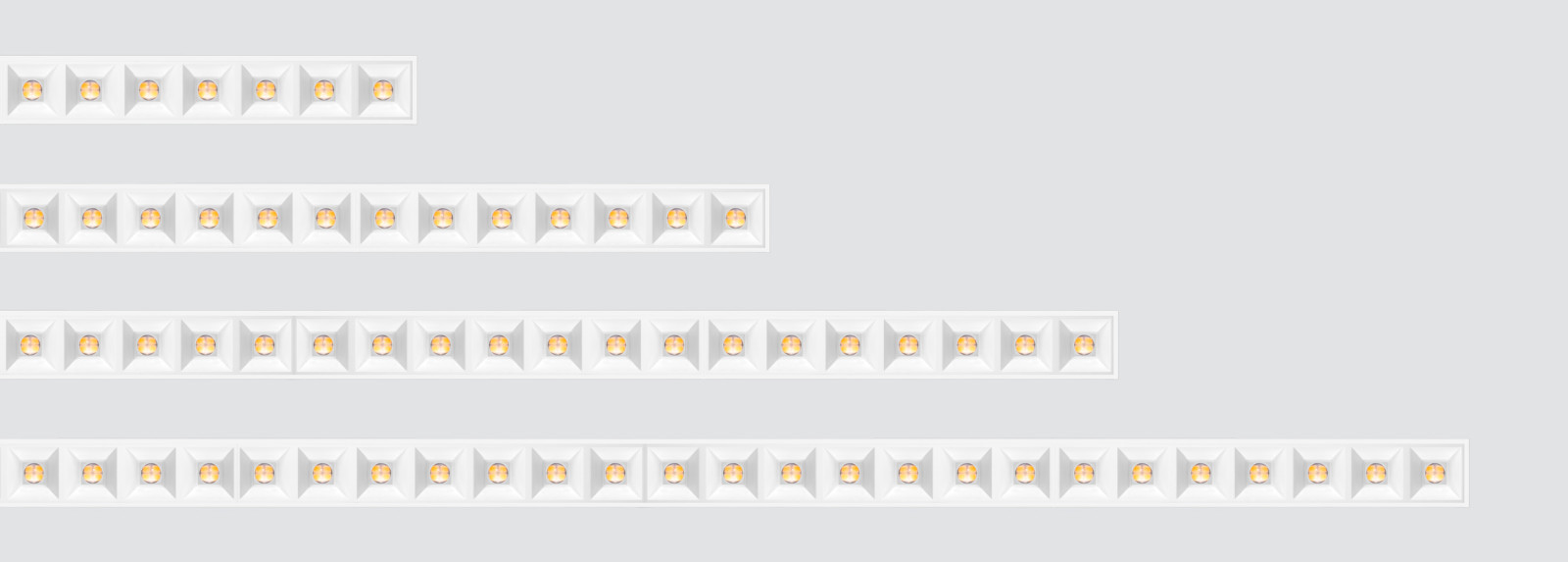

Frameless linear fixture in 284mm, 564mm, 844mm, 1124mm , 1404mm or 2804mm and in a width of 50mm.

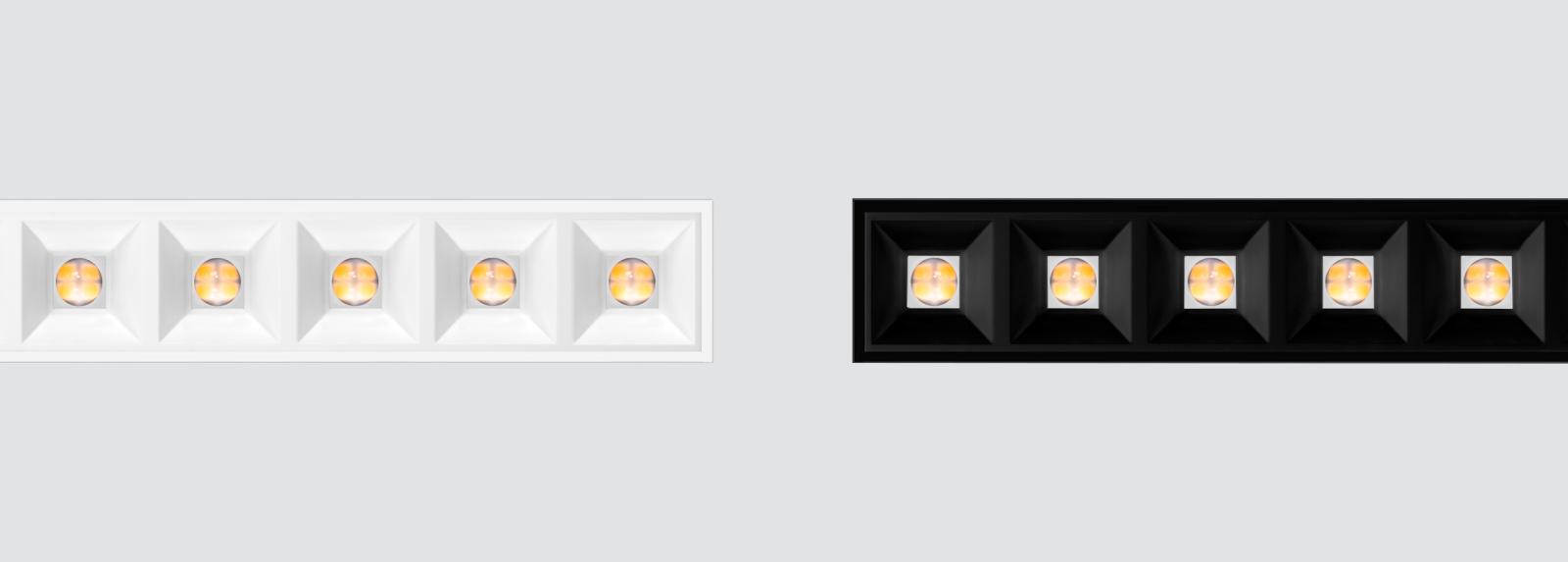

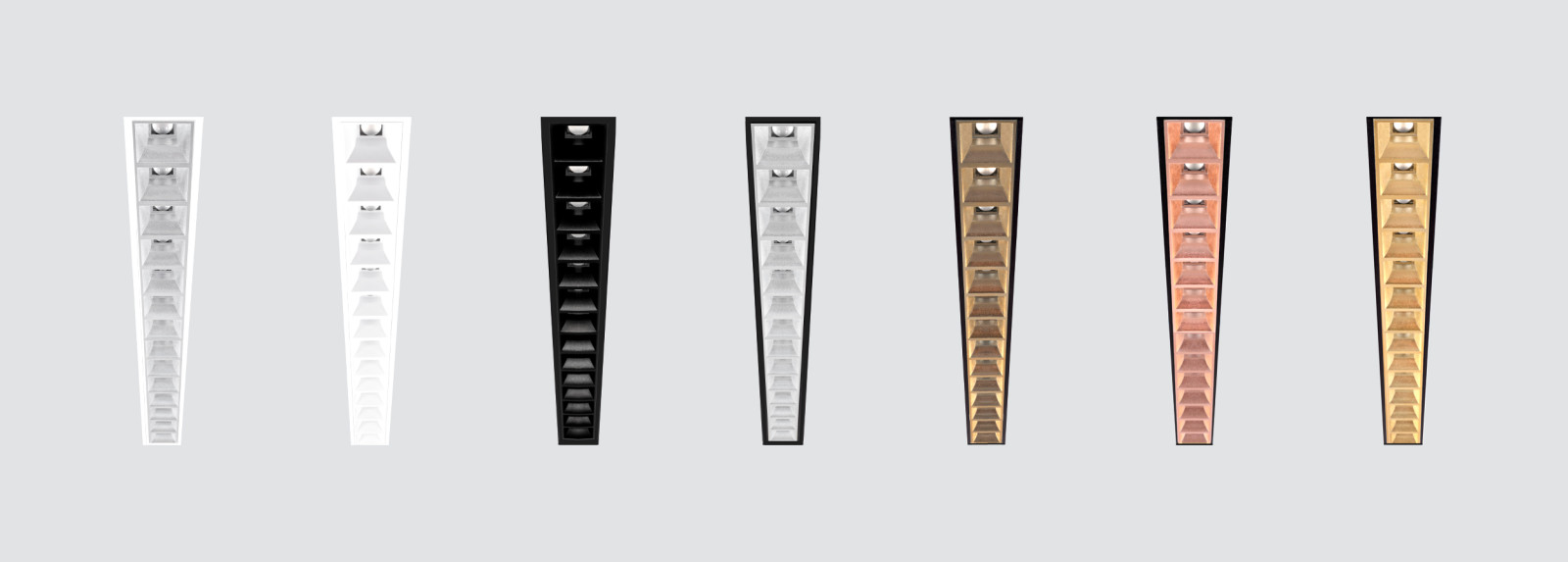

Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Metallised modular optics designed to ensure visual comfort.
Highly efficient linear printed circuit board.
Built-in driver, included.
Passive temperature management.
Ceiling-mounted using steel support with screws.

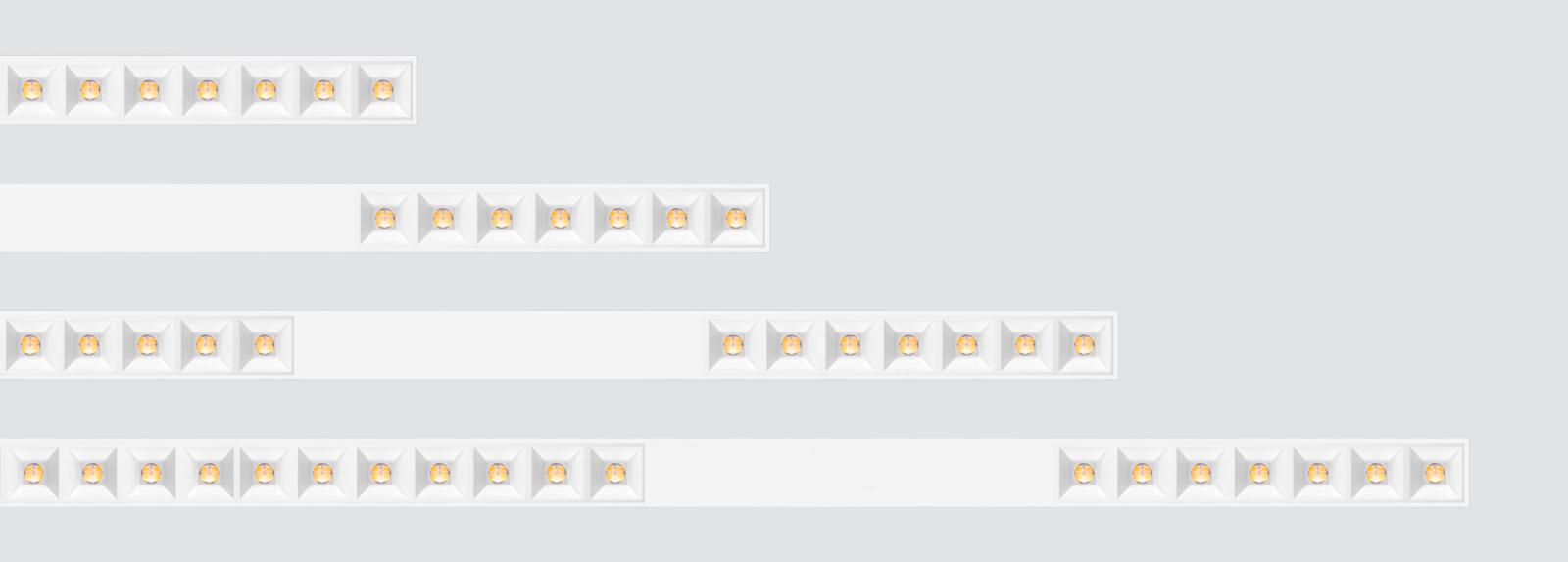

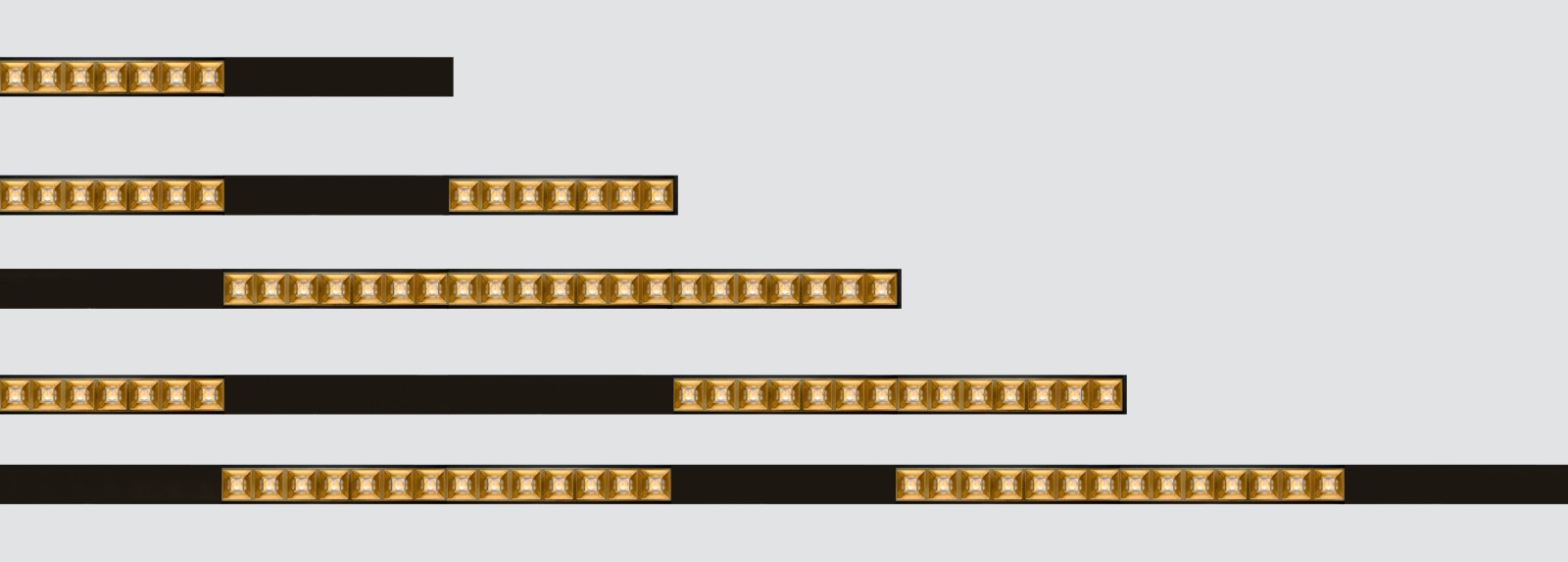

It is possible to combine different lengths to create customized systems.

Suggested applications: private appartements, offices, boutiques, showrooms, galleries, museums, meeting rooms, restaurants, hotels and similar applications.

Product configurator

Tilt

Dimensions recessed

Height

Colour Temperature

CRI

UGR

Beam angle

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F2KBR0.11
78
2.8W
524lm
80
3000K
284x53
284x50
69mm
250KBR.11-I1205
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
2.8W
559lm
80
4000K
284x53
284x50
69mm
250KBR.11-I1206
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
3.7W
696lm
80
3000K
284x53
284x50
69mm
250KBR.11-I1207
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
3.7W
735lm
80
4000K
284x53
284x50
69mm
250KBR.11-I1208
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
4.7W
867lm
80
3000K
284x53
284x50
69mm
250KBR.11-I1209
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
4.7W
916lm
80
4000K
284x53
284x50
69mm
250KBR.11-I1210
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
6.7W
1205lm
80
3000K
284x53
284x50
69mm
250KBR.11-I1211
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
6.7W
1274lm
80
4000K
284x53
284x50
69mm
250KBR.11-I1212
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
8.8W
1539lm
80
3000K
284x53
284x50
69mm
250KBR.11-I1213
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.11
78
8.8W
1617lm
80
4000K
284x53
284x50
69mm
250KBR.11-I1214
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.14
76
2.8W
514lm
80
3000K
284x53
284x50
69mm
250KBR.14-I1205
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.14
76
2.8W
547lm
80
4000K
284x53
284x50
69mm
250KBR.14-I1206
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.14
76
3.7W
682lm
80
3000K
284x53
284x50
69mm
250KBR.14-I1207
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.14
76
3.7W
720lm
80
4000K
284x53
284x50
69mm
250KBR.14-I1208
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT


F2KBR0.14
76
4.7W
850lm
80
3000K
284x53
284x50
69mm
250KBR.14-I1209
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
