KIBRI 200 250KBR.11-I1205






Frameless linear fixture in 284mm length and in a width of 50mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
White finish modular optics in 7 cells designed to ensure visual comfort.
Blind covers available with a length of 280mm or its multiples: accessory reference M5.Y.
Highly efficient linear printed circuit board.
Built-in driver, included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
It is possible to combine different lengths and junction modules in different ways to create customized design.
Luminaire luminous flux: 524lm
Luminaire connected power: 3.97 W
Luminaire efficiency: 132 lm/W
Light source luminous flux: 535lm
Light source power: 2.8 W
mA: 150 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam3
CRI: 80

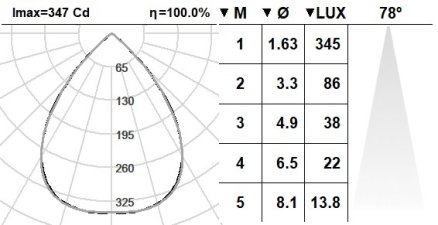

Beam angle: 78
UGR: <17
Photobiological risk: 1
This product contains a light source of energy efficiency class: C
Rated Median useful life: >90.000h L80B10
Class: 1
IP: 20
Incandescent filament: 650
Embedding dimensions: 284mm x 53mm
Luminaire dimensions: 284mm x 50mm
Electronic Accessories:
S: On/Off
D: DALI-2/switchDIM
B: Bluetooth-Casambi
-
11: White frame - white reflector
All RAL colours are available under request
