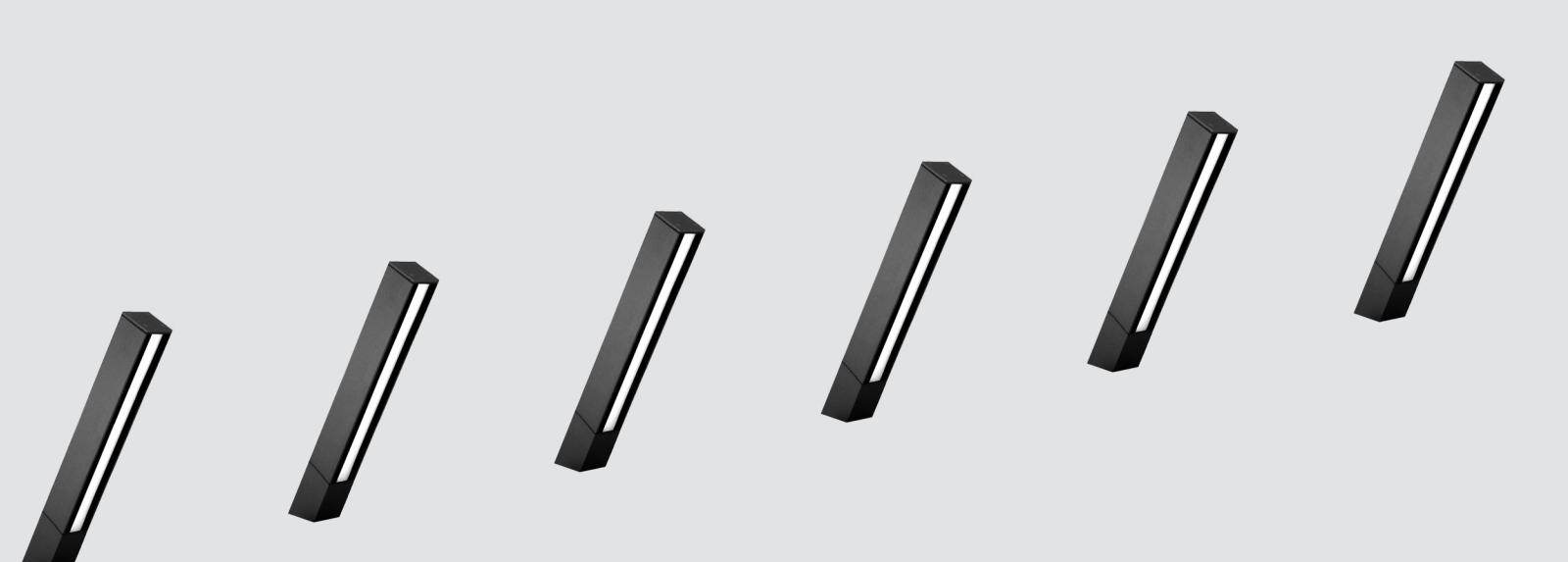

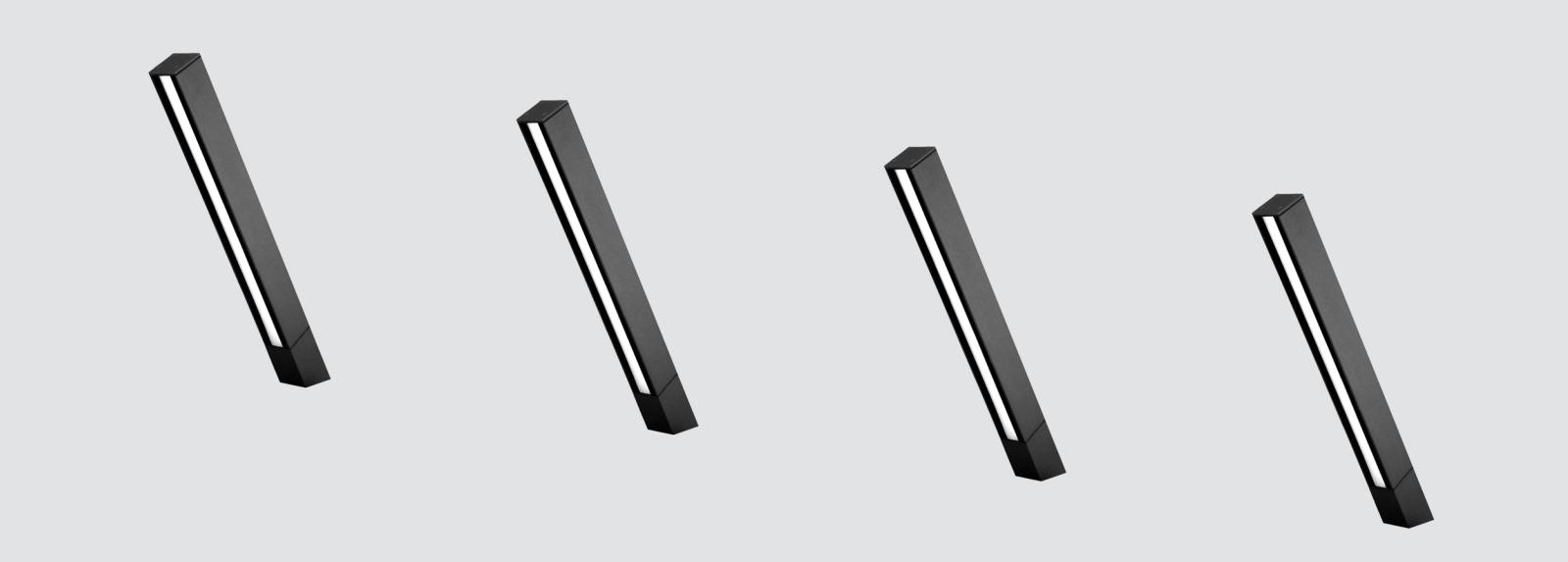

KORAMU 200  | Inclined IP66 bollards

KORAMU 200 | Inclined IP66 bollards

Bollard with frontal light emission, symmetrical distribution.

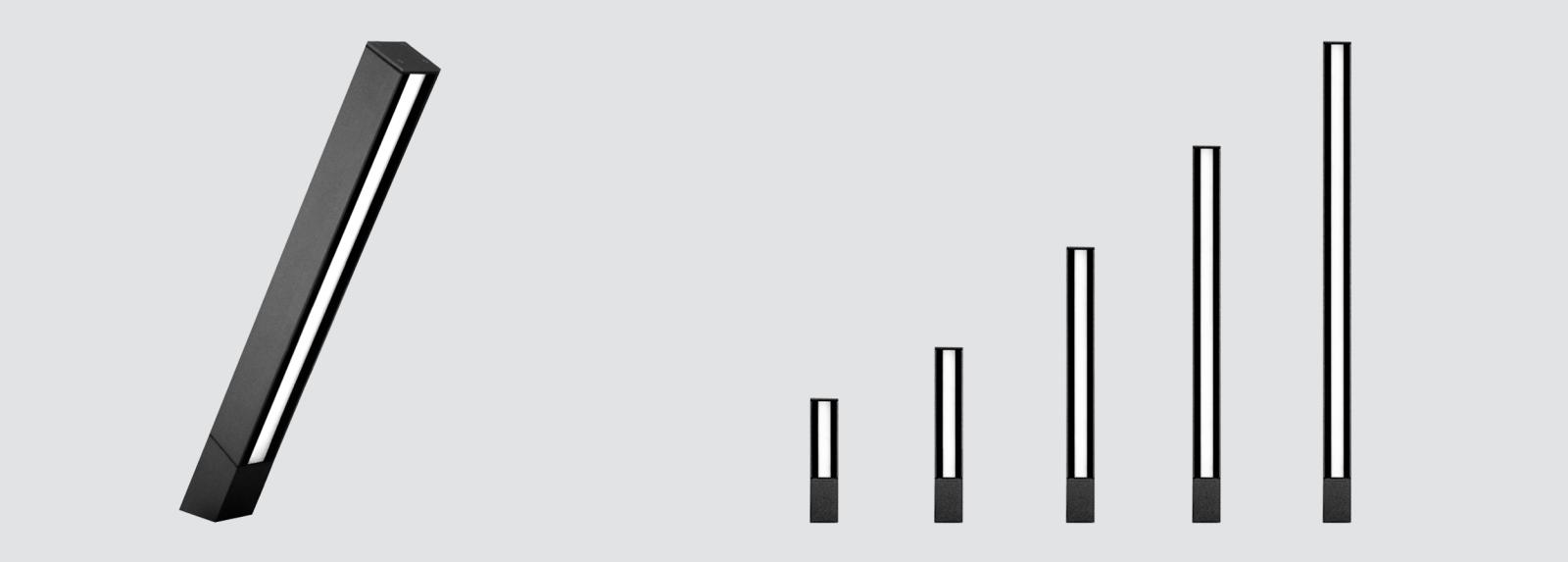

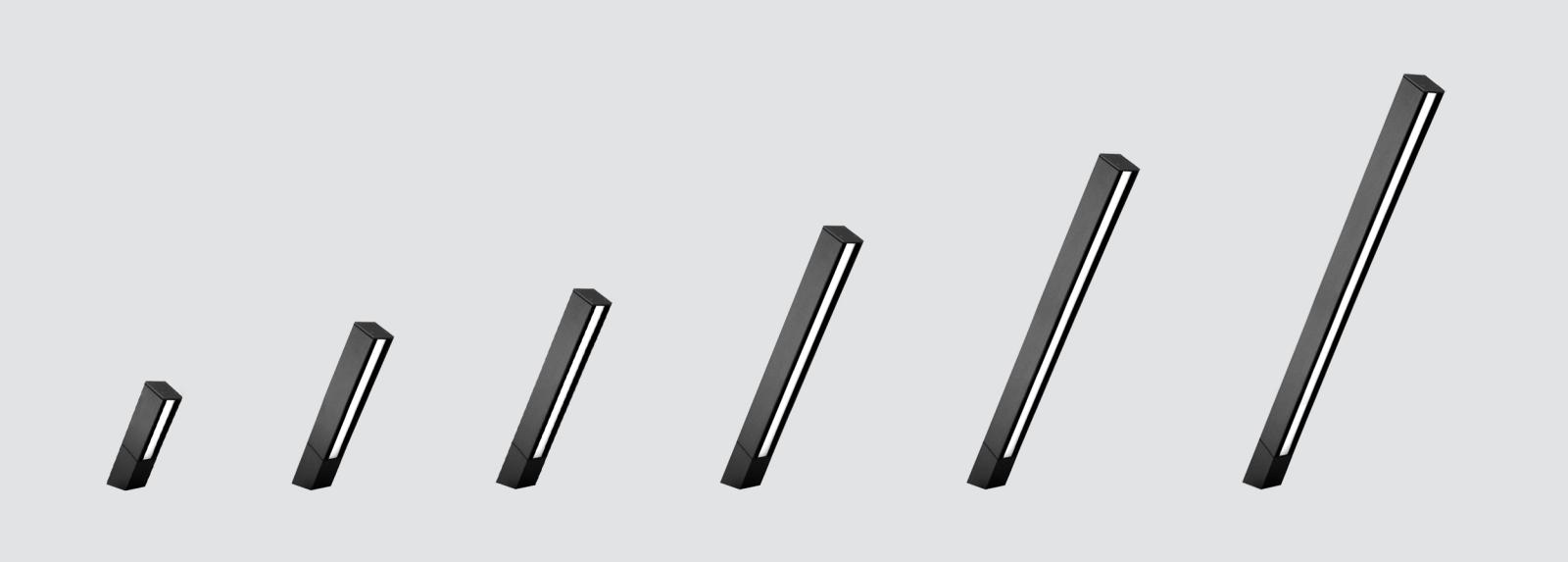

Available in 5 heights (240mm, 380mm, 660mm, 940mm and 1220mm) and with 60º inclination from the horizontal axis.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Powder painted extruded aluminium profile treated for corrosion resistance (nanophoresis) and covered with a polyester powder coating to guarantee durability. Textured paint finish.
Special coating for environments with very high corrosivity is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
Electronic options for light control : DALI/DSI/switchDIM/corridor function.
IP68 connector not included, it can be ordered separately.
Mounting plate for floor installation supplied with the fixture.

PRODUCT CONFIGURATOR

Tilt

Outer dimensions

Height

IK

Color Temperature

CRI

Luminous flux of the fixture

Beam angle

Diffuser

Power

Electronic equipment

SEARCH RESULTS

Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
F220KRM
frontal  91
220KRM.4-I1456
6,4W
551lm
>80
2700K
62mm x 65mm
660mm
F220KXS
frontal  100
220KXS.4-I1401
1,6W
137lm
>80
3000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1400
1,6W
137lm
>80
2700K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1403
1,6W
146lm
>80
5000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1402
1,6W
146lm
>80
4000K
62mm x 65mm
240mm
F220KRM
frontal  91
220KRM.4-I1457
6,4W
549lm
>80
3000K
62mm x 65mm
660mm
F220KXS
frontal  100
220KXS.4-I1408
2,7W
225lm
>80
3000K
62mm x 65mm
240mm
F220KRM
frontal  91
220KRM.4-I1458
6,4W
583lm
>80
4000K
62mm x 65mm
660mm
F220KXS
frontal  100
220KXS.4-I1407
2,7W
225lm
>80
2700K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1409
2,7W
239lm
>80
4000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1410
2,7W
239lm
>80
5000K
62mm x 65mm
240mm
F220KRM
frontal  91
220KRM.4-I1459
6,4W
578lm
>80
5000K
62mm x 65mm
660mm
F220KXS
frontal  100
220KXS.4-I1422
5,02W
392lm
>80
3000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1414
3,85W
313lm
>80
2700K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1415
3,85W
311lm
>80
3000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1421
5,02W
394lm
>80
2700K
62mm x 65mm
240mm
F220KRM
frontal  91
220KRM.4-I1463
10,82W
902lm
>80
2700K
62mm x 65mm
660mm
F220KXS
frontal  100
220KXS.4-I1417
3,85W
331lm
>80
5000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1424
5,02W
414lm
>80
5000K
62mm x 65mm
240mm
F220KXS
frontal  100
220KXS.4-I1416
3,85W
331lm
>80
4000K
62mm x 65mm
240mm
