KORAMU 200 220KRM.4-I1463
Bollard height 602mm with 60º inclination from the horizontal axis.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium profile coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
IP67 venting valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Pre-wiring of 35cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Accessory for concrete installation reference F3.P1.KRM.
Accessory for grass installation reference F3.O1.KRM.
Luminaire luminous flux: 902lm
Luminaire connected power: 12,02 W
Luminaire efficiency: 75 lm/W
Light source luminous flux: 2005lm
Light source power: 10,82 W
mA: 250 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >80

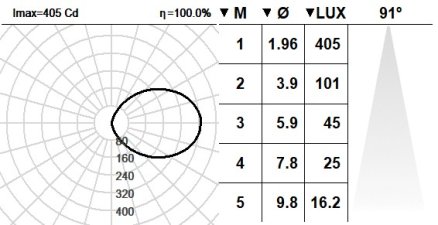

Beam angle: 91
This product contains a light source of energy efficiency class: C
LED reliability at nominal Ta = 25ºC: 100.000h L80B10
Class: 1
IP: 66
IK: 10
Incandescent filament: 850
Luminaire dimensions: 62mm x 65mm
Weight: 2.4 Kg
Electronic Accessories:
S: On/Off (AC/DC)
D: DALI-2/switchDIM/corridorFUNCTION
B: Bluetooth-Casambi [ 15m ]
-
80 Corten -
90 : RAL6005 Moss Green textured -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
Downloads
-
80 Corten -
90 : RAL6005 Moss Green textured -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
