100
1,6W
146lm
>80
3000K
221x75mm
250mm
LUCERNA | IP66 IK10 Bollards for ground illumination

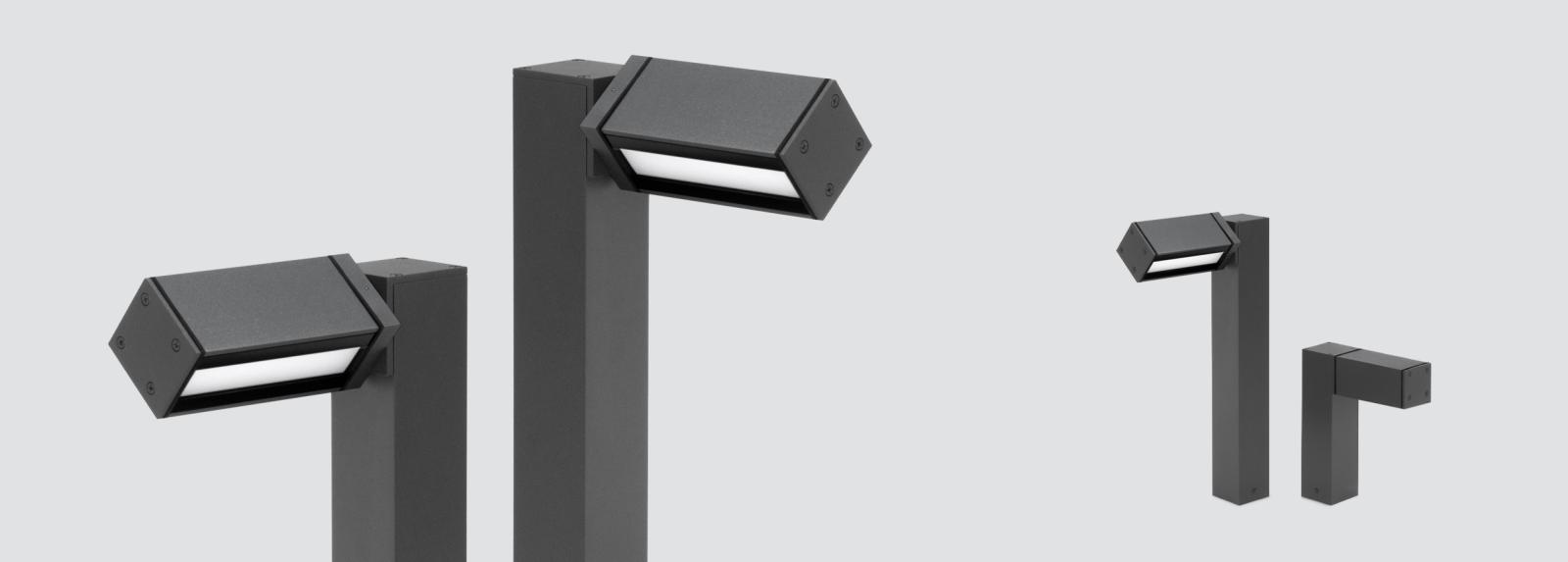

Bollard with rectilinear design for ground illumination with symmetrical and asymmetrical light distribution.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.

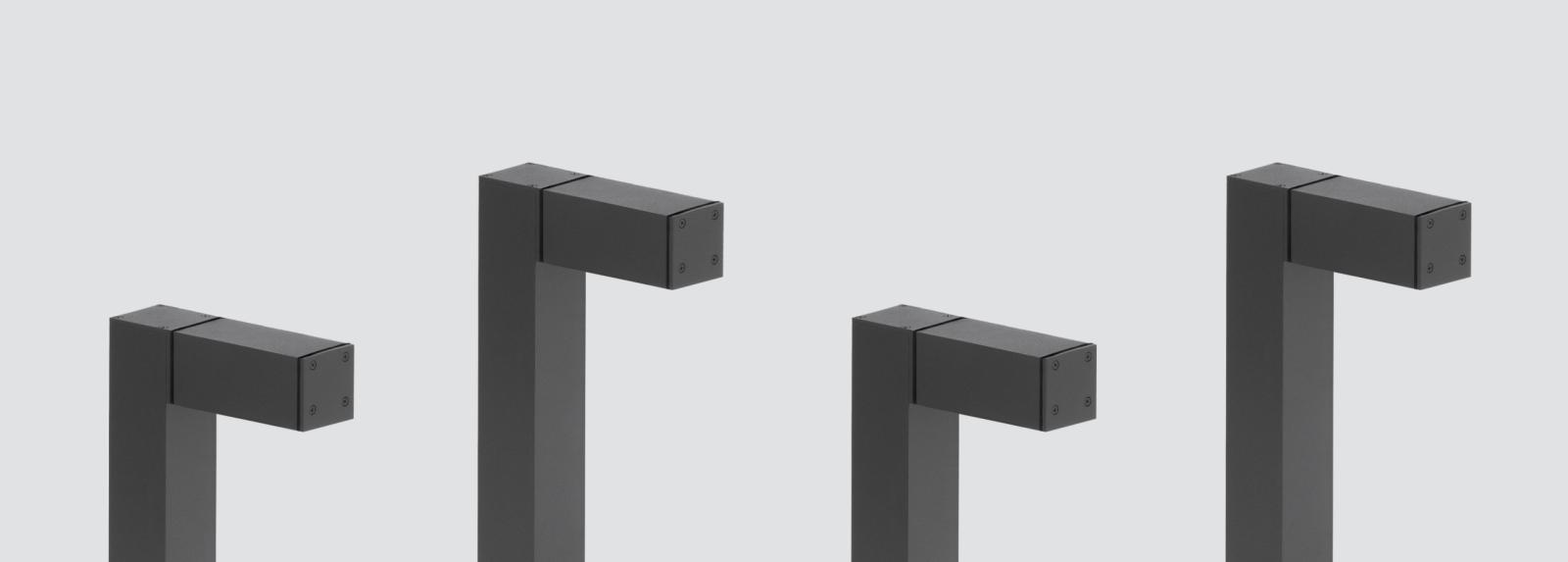

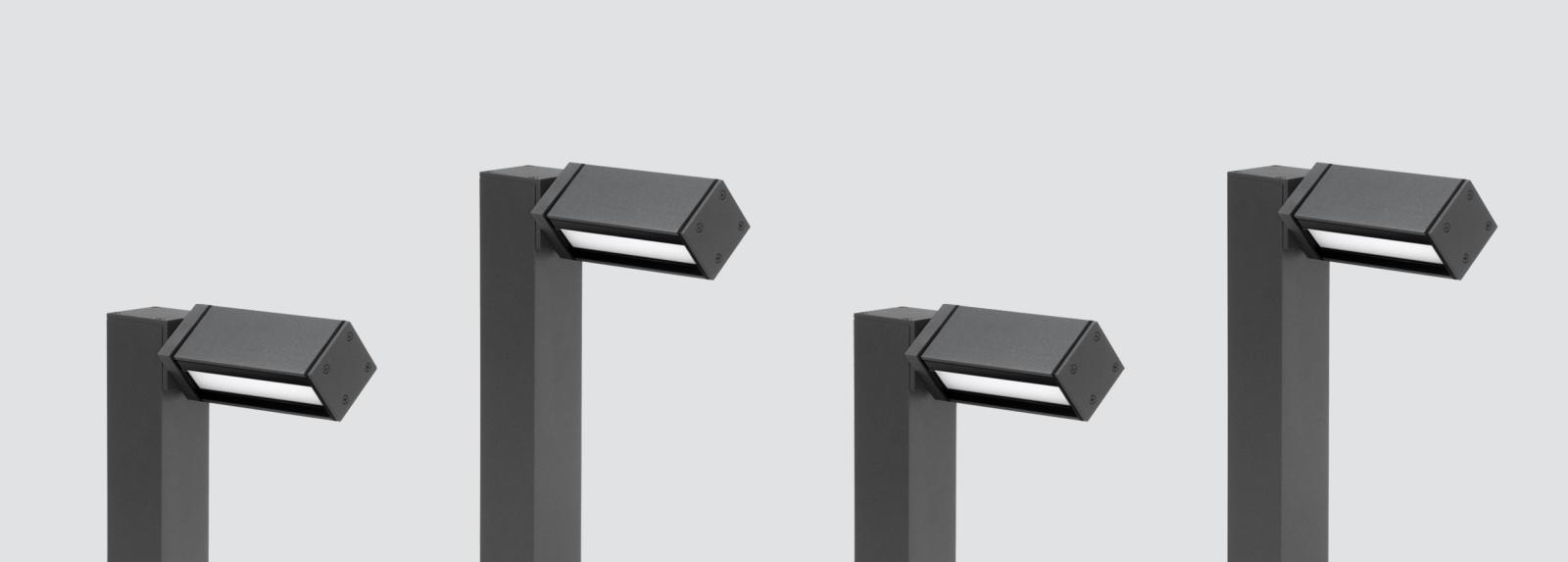

Fix and adjustable 180º + 180º version available.

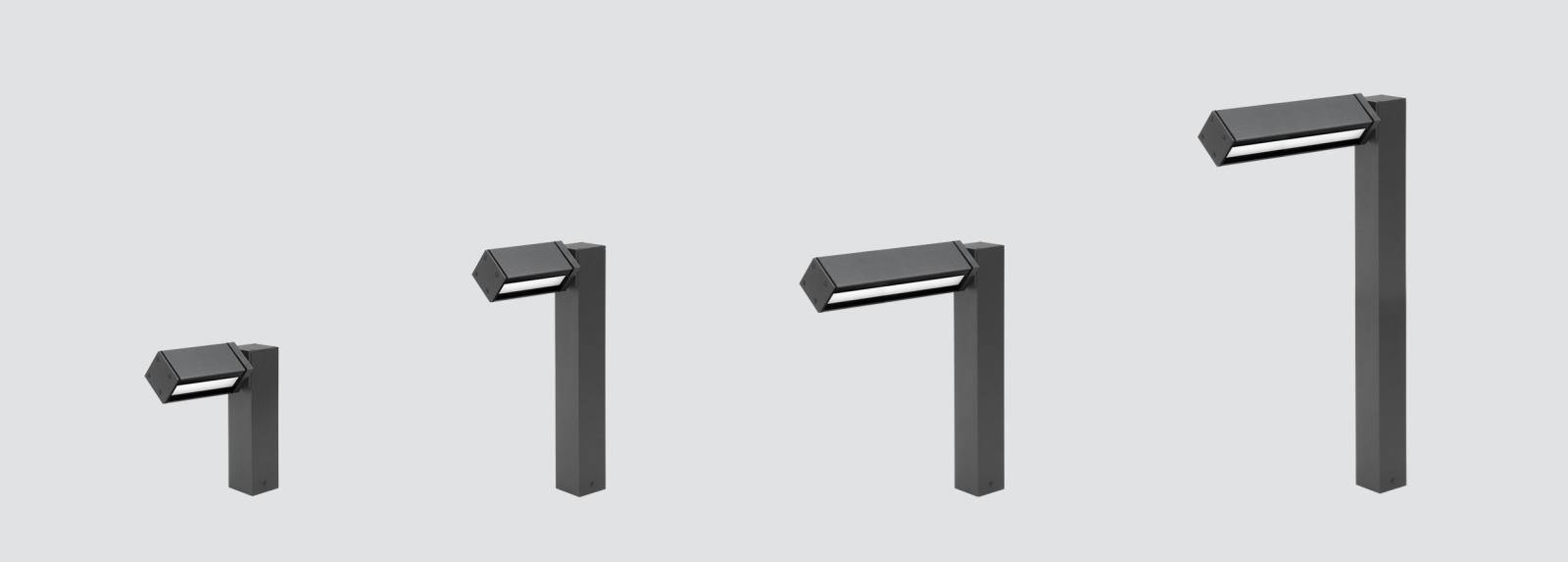

Available in 3 heights: 250mm, 450mm and 700mm.
Extruded aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior equipped with an opal diffuser or optics for a controlled light beam.
IP67 venting valve to reduce condensation.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included.
Electronic options for light control : DALI-2 or Bluetooth.
IP68 connector not included, it can be ordered separately.
Mounting plate for floor installation supplied with the fixture.

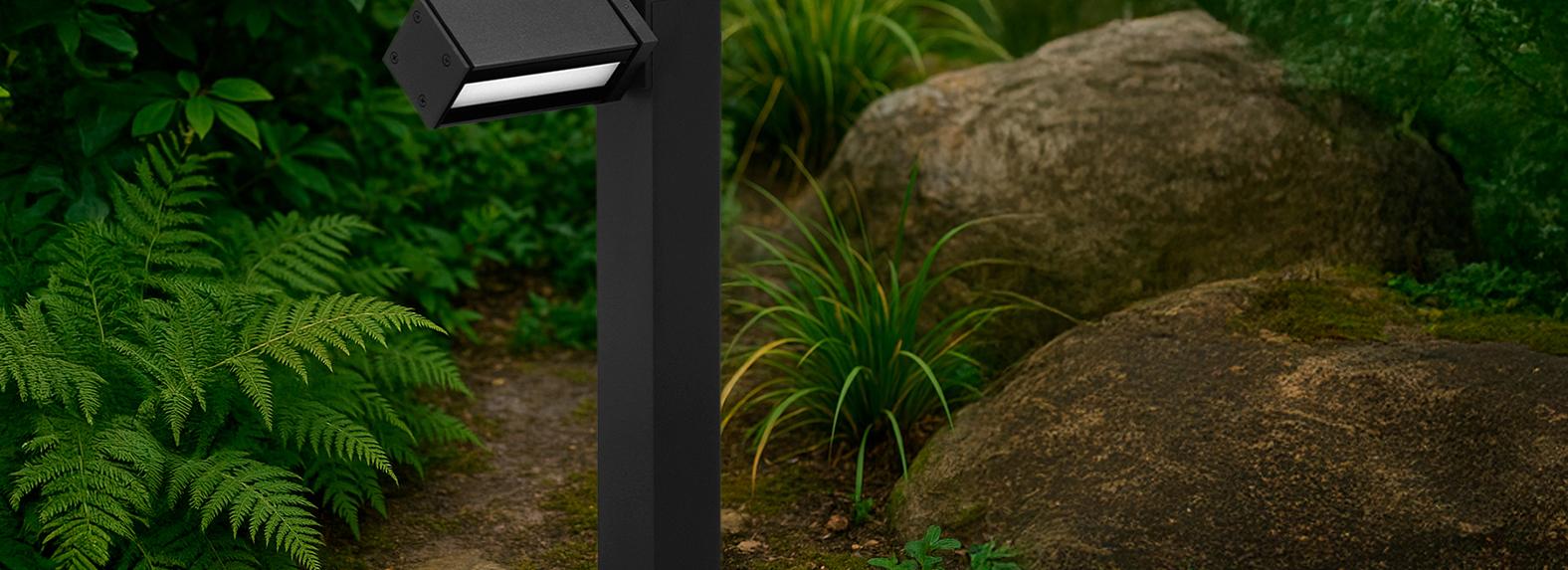

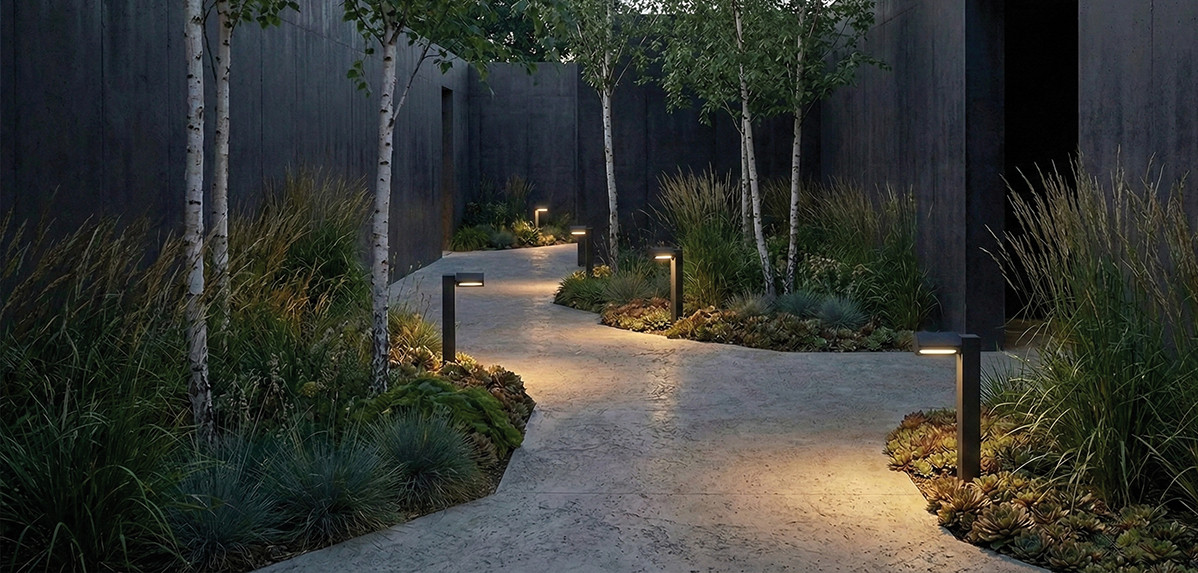

Recommended applications: walkways, landscaped areas, terraces, and squares. Ideal for contemporary architectural environments.
PRODUCT CONFIGURATOR
SEARCH RESULTS
Beam angle
Reference
Power
Luminous flux of the luminaire
CRI
Colour temperature
Outer dimensions
Height
