LUCERNA 150LCN.4.01-I1407

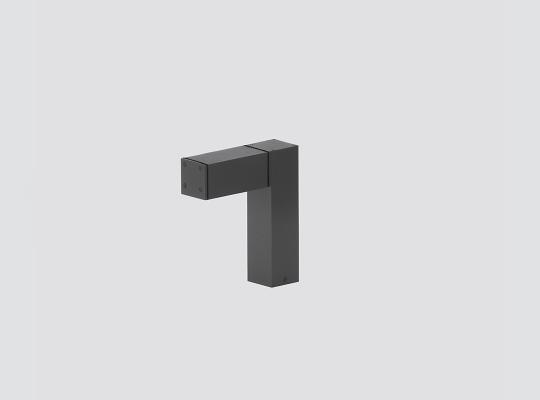

Bollard ground illumination with symmetrical light distribution.
Bollard height 250mm.
Protection rating against dust and moisture: IP66 – full protection.
Protection rating for resistance against harmful mechanical impacts: IK10.
Extruded aluminium body coated with polyester powder along with C4 treatment for corrosion resistance to guarantee further durability. Textured paint finish. Different RAL colour finishes available under request. C5-M special coating for highly corrosive environments is available under request.
4mm frontal polycarbonate diffuser.
Interior opal diffuser.
Anticondensation device.
Silicone gasket.
Highly efficient linear printed circuit board.
Built-in driver included. Ambient temperature: up to 50ºC.
Electronic options for light control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
A4 stainless steel locking screw. Optional supply of A2 stainless steel vandal-resistant screws.
IP68 connector not included, it can be ordered separately: F3.A3 (On/Off) / F3.A5 (DALI).
Pre-wiring of 15cm cable 3x1mm2.
Mounting plate for floor installation supplied with the fixture.
Sturdy base accessory to ensure high stability in public spaces reference F3.2.LCN.
Luminaire luminous flux: 240lm
Luminaire connected power: 5,22 W
Luminaire efficiency: 46 lm/W
Light source luminous flux: 500lm
Light source power: 2,7 W
mA: 250 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >80

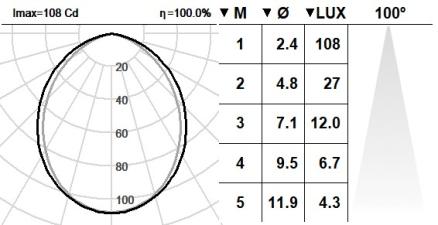

Beam angle: 99
This product contains a light source of energy efficiency class: C
LED reliability at nominal Ta = 25ºC: >72000h L80B10
Class: 1
IP: 66
IK: 10
Incandescent filament: 850
Luminaire dimensions: 221x75mm
Electronic Accessories:
S: On/Off
D: DALI-2/switchDIM
-
80 Corten -
90 : RAL6005 Moss Green -
7: RAL9006: White Aluminium textured -
4: RAL7016: Anthracite Grey textured -
2: RAL9005: Jet Black textured -
1: RAL9010: Pure White textured
All RAL colours are available under request
