FOCUS 101FCS.1-R1147
Recessed ceiling-mounted downlight with directional inner light source to achieve an effective task or accent lighting.
Adjustable to 30º.
Circular design in diameter 190mm.
Metalized specular aluminium reflector.
Interior reflector in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
LED ring decorative accessory as option [reference F1.B0190].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
Remote driver supplied. LED module for special applications.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by three fixing points.
Adjustable to 30º.
Circular design in diameter 190mm.
Metalized specular aluminium reflector.
Interior reflector in assorted finishes: facetted metalized or sandblasted metalized depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
LED ring decorative accessory as option [reference F1.B0190].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
Remote driver supplied. LED module for special applications.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Mounted to the ceiling by three fixing points.
DOWNLOADS
ACCESSORIES AND FINISHES

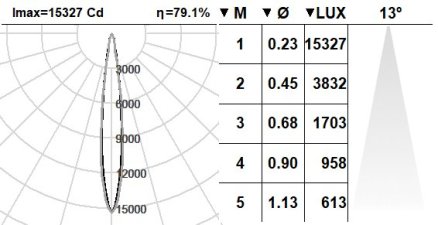

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1292lm
- Light source luminous flux: 1635lm
- CRI: >90
- Colour temperature: GOLD
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 13 º
- This product contains a light source of energy efficiency class: E
- LED reliability at nominal Ta = 25ºC: 51000h L80B10
- Cd/Klm: 9375
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 170mm
- Luminaire diameter: 190mm
- Weight: 1.62 Kg
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 12.61 W
- Light source power: 11 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
K: On/Off (basic)
-
S: On/Off (AC/DC + looping through)
-
SE: On/Off (AC/DC+looping) + 3h battery
-
D: DALI-2/switchDIM/corridorFUNCTION
-
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: II
- IP: 20
- Incandescent filament: 850 ºC
- Recessed diameter: 170mm
- Luminaire diameter: 190mm
- Weight: 1.62 Kg
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
