TRIANGLE 101TRG.1-R2003

CLASS2 IP54 FIL850 +RAL INFLA CE
Recessed ceiling-mounted downlights with symmetrical light distribution to achieve an effective task or general lighting.
Triangular design in 216mm side.
Protection rating against dust and moisture: IP54 from underneath.
High-purity matt anodised aluminium reflector.
Powder painted aluminium frame available in assorted finishes, customized RAL under request.
Frosted protection glass.
Remote driver included.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through an aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
F101TRG

DOWNLOADS

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All

ACCESSORIES AND FINISHES

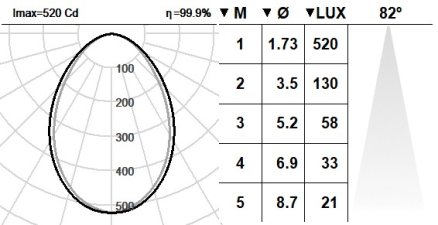

PHOTOMETRIC CHARACTERISTICS

  • Luminaire luminous flux: 907lm
  • Luminaire efficiency: 76 lm/W
  • Light source luminous flux: 1620lm
  • CRI: >90 R9 62
  • Colour temperature: 2700K
  • Chromaticity Tolerance: MacAdam 3
  • Beam angle: 82
  • This product contains a light source of energy efficiency class: E
  • LED reliability at nominal Ta = 25ºC: 100.000h L90B10
101TRG.1-R2003

TECHNICAL DATA

  • Class: II
  • IP: 54
  • Incandescent filament: 850 ºC
  • Embedding dimensions: 196x196x196mm
  • Luminaire dimensions: 216x216x216mm
  • Weight: 0.92 Kg
D101TRG DP101TRG

ELECTRICAL CHARACTERISTICS

  • Luminaire connected power: 11,9 W
  • Light source power: 10,66 W
  • Constant current: 350 mA

ELECTRONIC EQUIPMENT:

  • K: On/Off (basic)

  • S: On/Off (AC/DC + looping through)

  • SE: On/Off (AC/DC+looping) + 3h battery

  • D: DALI-2/switchDIM/corridorFUNCTION

  • DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h

  • B: Bluetooth-Casambi

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 2 Upgradeable, replaceable, repairable icon 1

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

TECHNICAL DATA

  • Class: II
  • IP: 54
  • Incandescent filament: 850 ºC
  • Embedding dimensions: 196x196x196mm
  • Luminaire dimensions: 216x216x216mm
  • Weight: 0.92 Kg
D101TRG DP101TRG

STANDARD FINISHES

  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
