F102SHW
D102SHW_103SHW DP102SHW_103SHW
102SHW.1-R872

SHALLOW 102SHW.1-R872

CLASS2 IP20 FIL850 DECO INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or ambient lighting.
Circular design in diameter 150mm.
Its main feature is its low height: 82mm.
Sandblasted metalized aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Drop glass disk accessory available in assorted colours [reference M1.A0150].
Drop metal disk accessory available in assorted colours [reference M1.B0150].
Decorative LED ring accessory available in assorted colours [reference F1.B0150].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0150].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0150].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted with spring clamps for easy installation.

Luminaire luminous flux: 1687lm

Luminaire connected power: 18.33 W

Luminaire efficiency: 92 lm/W

Light source luminous flux: 2280lm

Light source power: 17 W

mA: 500 mA

Colour temperature: 2700K

Chromaticity Tolerance: MacAdam 3

CRI: >90

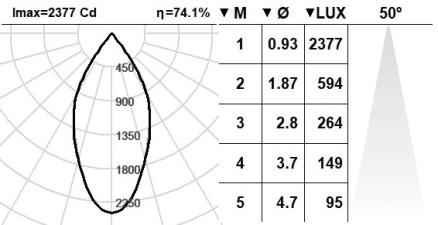

Beam angle: 50

Cd/Klm: 1042

Imax Cd: 2376

UGR: <19

Photobiological risk: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

Recessed diameter: 140mm

Luminaire diameter: 150mm

Weight: 1.27 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC + looping through)

SE: On/Off (AC/DC+looping) + 3h battery

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

Upgradeable, replaceable, repairable
