QUADRATIC 107QTC.1-R897
Square design available in 225mm x 225mm.
High-purity matt anodised aluminium reflector.
Powder painted die-cast aluminium frame available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.D0225].
Drop square glass accessory available in assorted colours [reference M1.C0225].
Drop square metal accessory available in assorted colours [reference M1.E0225].
LED frame accessory available in assorted colours [reference M1.D0225].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
Luminaire luminous flux: 4858lm
Luminaire connected power: 53.18 W
Luminaire efficiency: 91 lm/W
Light source luminous flux: 6565lm
Light source power: 48 W
mA: 1400 mA
Colour temperature: 3000K
Chromaticity Tolerance: MacAdam 3
CRI: >90

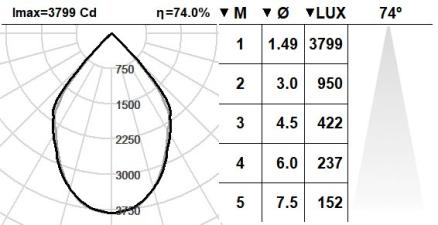

Beam angle: 74
Cd/Klm: 579
Imax Cd: 3801
UGR: <19 under the below indicated parameters
Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.35
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: 50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Embedding dimensions: 210mm x 210mm
Luminaire dimensions: 225mm x 225mm
Weight: 1.71 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
