F112SHW
D112SHW_113SHW DP112SHW_113SHW
112SHW.1-R864

SHALLOW 112SHW.1-R864

CLASS2 IP20 FIL850 DECO INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or ambient lighting.
Circular design in diameter 220mm
Remarkable low height: 50mm.
Sandblasted metalized aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Drop glass disk accessory available in assorted colours [reference M1.A0220].
Drop metal disk accessory available in assorted colours [reference M1.B0220].
Decorative LED ring accessory available in assorted colours [reference F1.B0220].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0220].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0220].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through an aluminium aluminium heat sink diffuser.
Ceiling-mounted using spring clamps.

Luminaire luminous flux: 1938lm

Luminaire connected power: 12.61 W

Luminaire efficiency: 154 lm/W

Light source luminous flux: 2040lm

Light source power: 11 W

mA: 350 mA

Colour temperature: 3000K

Chromaticity Tolerance: MacAdam 3

CRI: >80

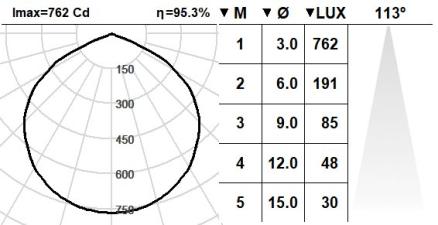

Beam angle: 113

Cd/Klm: 374

Imax Cd: 763

UGR: <19 under the below indicated parameters

Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.6

Photobiological risk: 1

This product contains a light source of energy efficiency class: D

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

Recessed diameter: 200mm

Luminaire diameter: 220mm

Weight: 0.99 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC + looping through)

SE: On/Off (AC/DC+looping) + 3h battery

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 1 Upgradeable, replaceable, repairable icon 2
D112SHW_113SHW DP112SHW_113SHW
112SHW.1-R864

Downloads

DATA SHEET
Description .txt
Photometric IES
Photometric LDT
Declaration conformity CE
Installation sheet
Technical drawing
Download All
Standard finishes
1: RAL9010: Pure White 2: RAL9005: Jet Black 4: RAL7016: Anthracite Grey 7: RAL9006: White Aluminium

All RAL colours are available under request
