SHALLOW



122SHW.1-R891


Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task or ambient lighting.
Circular design in diameter 240mm.
Its main feature is its low height: 106mm.
Sandblasted metalized aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Drop glass disk accessory available in assorted colours [reference M1.A0240].
Drop metal disk accessory available in assorted colours [reference M1.B0240].
Decorative LED ring accessory available in assorted colours [reference F1.B0240].
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0240].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0240].
Remote driver supplied.
Electronic options for lighting control: DALI/DSI.
Emergency kit as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.

Luminous flux of the light source: 5035lm

Luminous flux of the luminaire:  4280lm

Luminaire efficiency: 110 lm/W

Light source power: 35 W

Luminaire power: 38.97 W

mA: 1050 mA

Colour temperature: 3000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

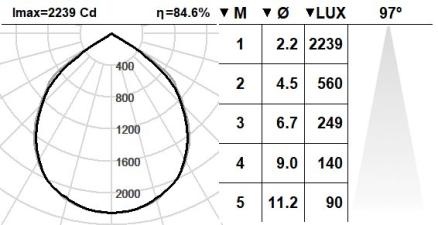

Beam angle: 97

Cd/ Klm: 445

Imax Cd: 2241

UGR: <19

Room dimensions X=4H/8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.55m

Photobiological safety group: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850°

Recessed diameter: 220mm

Luminaire diameter: 240mm

Weight: 1.72 Kg

Electronic Equipment:
S: On/Off
SE: On/Off + Emergency Kit [class I]
D: DALI/DSI/switchDIM
DE: DALI/DSI/switchDIM+E-Kit  [class I]
DDE: DALI/DSI/switchDIM+E-Kit (DALI) [class I]
B: Bluetooth Casambi
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE PC

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
