VSTAR 130VST.1-R892
Trimless circular design in diameter 195mm.
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Sandblasted metalized aluminium reflector.
Powder painted aluminium circle and interior trim available in various finishes, customized RAL under request. To complete the effect of this fixture, it is also recommended that the inner ring should be painted the same RAL colour as the ceiling.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0195].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.
Luminaire luminous flux: 3858lm
Luminaire connected power: 38.97 W
Luminaire efficiency: 99 lm/W
Light source luminous flux: 5285lm
Light source power: 35 W
mA: 1050 mA
Colour temperature: 4000K
Chromaticity Tolerance: MacAdam 3
CRI: >90

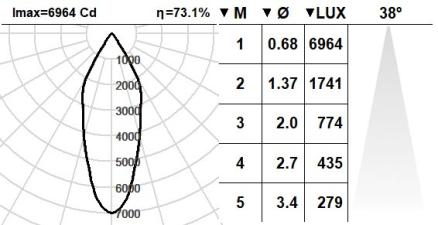

Beam angle: 38
Cd/Klm: 1318
Imax Cd: 6966
UGR: <19
Photobiological risk: 1
This product contains a light source of energy efficiency class: E
Rated Median useful life: 50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 196mm
Luminaire diameter: 195mm
Weight: 1.87 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
