KAUTTA 100 130KTA.1-I1446

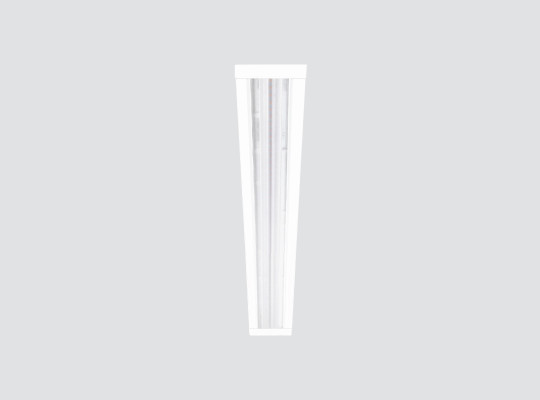

Linear fixture in 303mm length and in a width of 58mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
PMMA optics for controlling and directing the light.
Highly efficient linear printed circuit board.
Accessories available to create customized linear systems.
Built-in driver, included.
Electronic options for lighting control: DALI-2 or Bluetooth.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Pre-wiring of 35cm cable 3x1mm2.
Other options available:
- Frameless recessed.
- Surface mounted.
- Pendant.
- Wall-mounted.
- Projector.

DOWNLOADS
ACCESSORIES AND FINISHES

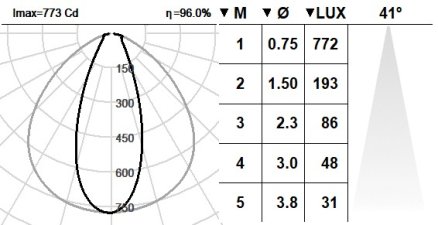

PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 1097lm
- Luminaire efficiency: 108 lm/W
- Light source luminous flux: 1180lm
- CRI: >90 R9 57
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam 3
- Beam angle: 43 º
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 100.000h L80B10
UGR: C0º = 21,6 | C90º = 27,1 under the below indicated parameters
Room dimensions X=4H/Y=8H
Reflectance 20% | 50% | 70%
Luminaire spacing = 0.25

TECHNICAL DATA
- Class: I
- IP: 40
- Incandescent filament: 650 ºC
- Embedding dimensions: 292x47mm
- Luminaire dimensions: 303x58mm
- Height: 78 mm Kg


ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 10,2 W
- Light source power: 7,7 W
- Constant current: 350 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off
-
D: DALI-2/switchDIM/corridorFUNCTION
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 40
- Incandescent filament: 650 ºC
- Embedding dimensions: 292x47mm
- Luminaire dimensions: 303x58mm
- Height: 78 mm


STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
