KAUTTA 100

KAUTTA 100

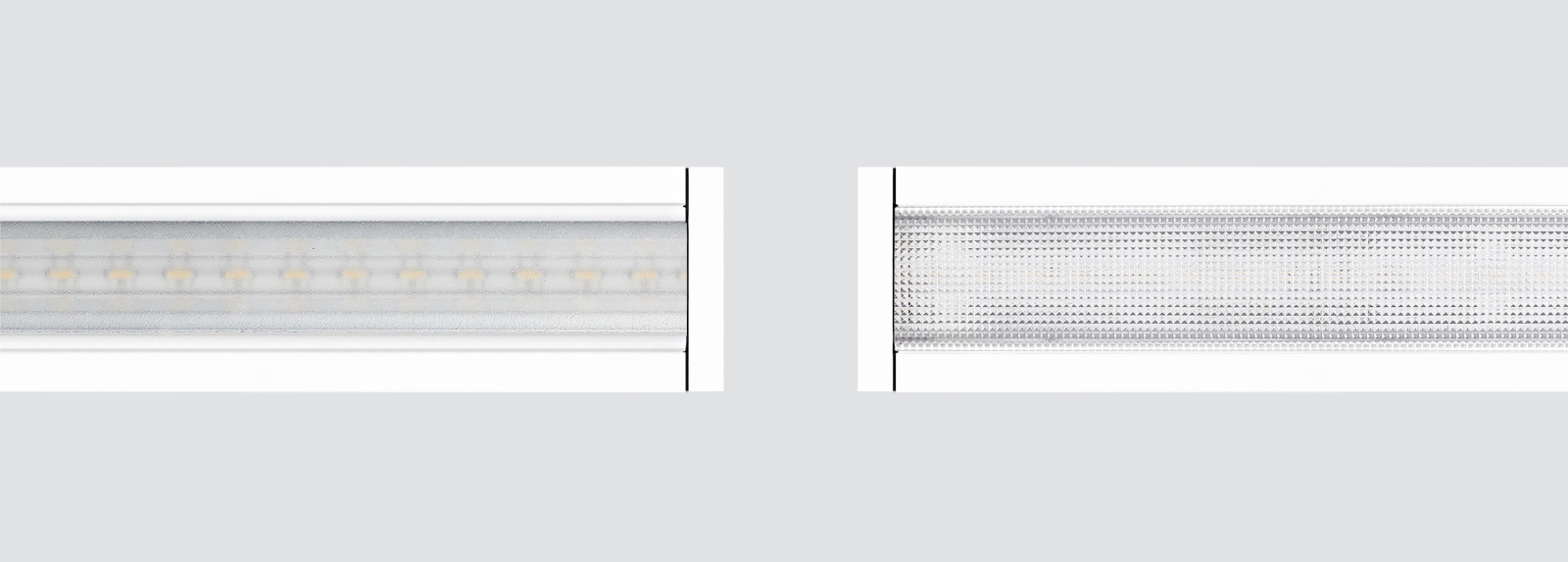

Recessed ceiling mounted linear downlights with symmetrical and asymmetrical light distribution to achieve an effective task or general lighting.
Linear fixtures available in 5 lengths 586mm, 866mm, 1146mm, 1426mm and 2826mm and in a width of 58mm.
Powder painted extruded aluminium profile available in assorted finishes, customized RAL under request.
Range of diffusers to achieve specific photometric results.
Highly efficient linear printed circuit board.
Built-in driver.
Passive temperature management.
Ceiling-mounted using steel support with screws.
Matching products:

  • frameless recessed.
  • surface mounted.
  • pendant.
  • wall-mounted.
  • projector.
Suggested applications: offices, schools and universities, retail, showrooms, leisure facilities, shopping malls, gyms, hospitals, laboratories, warehouses, industrial facilities and similar installations.

It is possible to combine different lengths and junction modules in different ways to create customized systems.

Product configurator

Tilt

Dimensions recessed

Outer dimensions

Height

Colour Temperature

CRI

UGR

Beam angle

mA

Accessories

Search results
Beam angle
Reference
Watt
Luminous flux of the luminaire
CRI
Colour Temperature
Embedding dimensions
Outer dimensions
Height

F13KTA
43
27,7W
>90
2700K - 6500K
574x47
586x58
78mm
131KTA.1-I677
DATA SHEET
Description .txt
Installation sheet
Technical drawing


F13KTA
ASY
27,7W
>90
2700K - 6500K
574x47
586x58
78mm
181KTA.1-I677
DATA SHEET
Description .txt
Installation sheet
Technical drawing


F13KTA
DASY
27,7W
>90
2700K - 6500K
574x47
586x58
78mm
191KTA.1-I677
DATA SHEET
Description .txt
Installation sheet
Technical drawing


F13KTA
43
6W
1084lm
80
2700K
574x47
586x58
78mm
131KTA.1-I723
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
10W
1627lm
80
2700K
854x47
866x58
78mm
133KTA.1-I751
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
13W
2169lm
80
2700K
1134x47
1146x58
78mm
135KTA.1-I779
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
16W
2711lm
80
2700K
1414x47
1426x58
78mm
136KTA.1-I807
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
32W
5422lm
80
2700K
2814x47
2826x58
78mm
139KTA.1-I835
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
6W
1118lm
80
3000K
574x47
586x58
78mm
131KTA.1-I724
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
10W
1677lm
80
3000K
854x47
866x58
78mm
133KTA.1-I752
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
13W
2236lm
80
3000K
1134x47
1146x58
78mm
135KTA.1-I780
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
16W
2795lm
80
3000K
1414x47
1426x58
78mm
136KTA.1-I808
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
32W
5589lm
80
3000K
2814x47
2826x58
78mm
139KTA.1-I836
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
6W
1170lm
80
4000K
574x47
586x58
78mm
131KTA.1-I725
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE


F13KTA
43
10W
1755lm
80
4000K
854x47
866x58
78mm
133KTA.1-I753
DATA SHEET
Description .txt
Installation sheet
Photometric IES
Technical drawing
Photometric LDT
Declaration conformity CE
