F133ATM
D130ATM_132ATM DP130ATM_132ATM
132ATM.1-R897

ATOMIC 132ATM.1-R897

CLASS2 IP20 FIL850 DECO INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 220mm.
Sandblasted metalized aluminium reflector.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0220].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0220].
Drop glass disk accessory available in assorted colours [reference M1.A0220].
Drop metal disk accessory available in assorted colours [reference M1.B0220].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.

Luminaire luminous flux: 4792lm

Luminaire connected power: 53.18 W

Luminaire efficiency: 90 lm/W

Light source luminous flux: 6565lm

Light source power: 48 W

mA: 1400 mA

Colour temperature: 3000K

Chromaticity Tolerance: MacAdam 3

CRI: >90

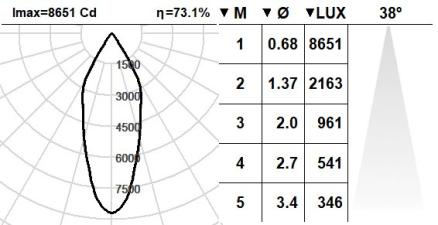

Beam angle: 38

Cd/Klm: 1318

Imax Cd: 8653

UGR: <19

Photobiological risk: 1

This product contains a light source of energy efficiency class: E

Rated Median useful life: 50000h L90B10

Class: 2

IP: 20

Incandescent filament: 850

Recessed diameter: 200mm

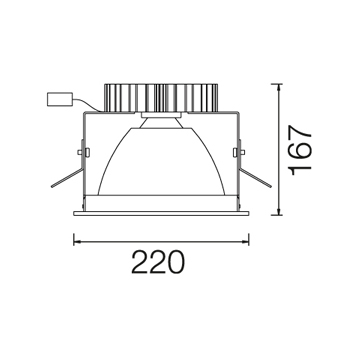

Luminaire diameter: 220mm

Weight: 1.67 Kg

Electronic Accessories:

K: On/Off (basic)

S: On/Off (AC/DC + looping through)

SE: On/Off (AC/DC+looping) + 3h battery

D: DALI-2/switchDIM/corridorFUNCTION

DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h

B: Bluetooth-Casambi

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request
