VSTAR 133VST.1-R863

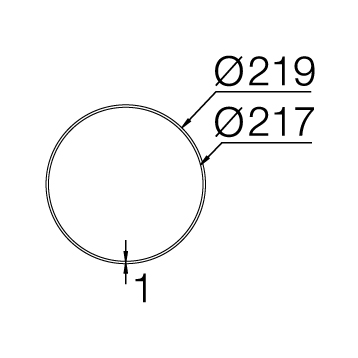

Trimless circular design in diameter 219mm.
Flush installation, the fixture is completely fitted in the ceiling void. Installation in plasterboard ceilings.
Sandblasted metalized aluminium reflector.
Powder painted aluminium circle and interior trim available in various finishes, customized RAL under request. To complete the effect of this fixture, it is also recommended that the inner ring should be painted the same RAL colour as the ceiling.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0219].
Remote driver supplied.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
3 hours battery available as option (class I).
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws.
Luminaire luminous flux: 1548lm
Luminaire connected power: 12.61 W
Luminaire efficiency: 123 lm/W
Light source luminous flux: 1960lm
Light source power: 11 W
mA: 350 mA
Colour temperature: 2700K
Chromaticity Tolerance: MacAdam 3
CRI: >80

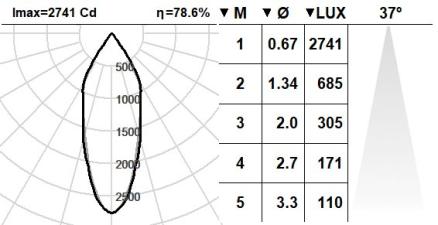

Beam angle: 37
Cd/Klm: 1398
Imax Cd: 2740
UGR: <16
Photobiological risk: 1
This product contains a light source of energy efficiency class: D
Rated Median useful life: 50000h L90B10
Class: 2
IP: 20
Incandescent filament: 850
Recessed diameter: 220mm
Luminaire diameter: 219mm
Weight: 1.97 Kg
Electronic Accessories:
K: On/Off (basic)
S: On/Off (AC/DC + looping through)
SE: On/Off (AC/DC+looping) + 3h battery
D: DALI-2/switchDIM/corridorFUNCTION
DE: DALI-2/switchDIM/corridorFUNCTION + Battery 3h
B: Bluetooth-Casambi
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium
All RAL colours are available under request
