F101ATM
D140ATM DPnoimatge
140ATM.1-R1185

ATOMIC 140ATM.1-R1185

CLASS2 IP20 FIL650 DECO INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 150mm.
High-purity aluminium reflector in assorted finishes: facetted metalized or sandblasted anodised depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0150].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0150].
Glass ring accessory available in assorted colours [reference F1.A0150].
Drop glass disk accessory available in assorted colours [reference M1.A0150].
Drop metal disk accessory available in assorted colours [reference M1.B0150].
Decorative LED ring accessory available in assorted colours [reference F1.B0150].
LED Module Tunable White: 2700K - 6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.

Luminaire luminous flux: 1043lm

Luminaire connected power: 14,3 W

Luminaire efficiency: 73 lm/W

Light source luminous flux: 1410lm

Light source power: 11 W

mA: 350 mA

Colour temperature: 2700K-6500K

Chromaticity Tolerance: MacAdam 3

CRI: >90

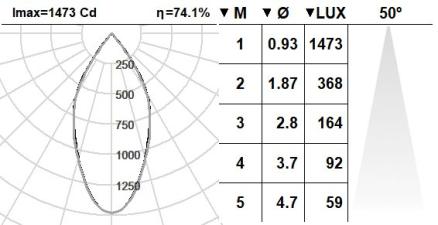

Beam angle: 50

Imax Cd: 1891

UGR: <19

Photobiological risk: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >60000h L90B10

Class: 2

IP: 20

Incandescent filament: 650

Recessed diameter: 140mm

Luminaire diameter: 150mm

Weight: 1.28 Kg

Electronic Accessories:

T: Tunable White DALI-2/switchDIM/ColourSwitch

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 1 Upgradeable, replaceable, repairable icon 2
