ATOMIC
146ATM.1-R1185

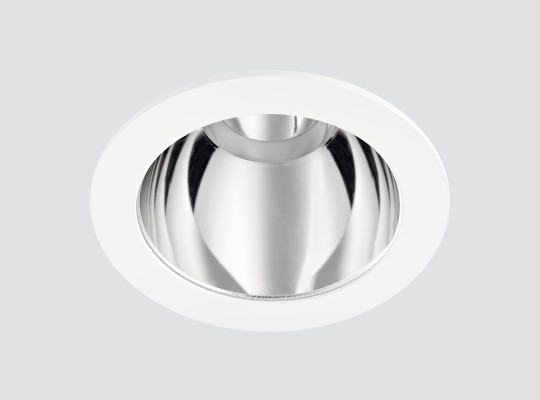

Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 190mm.
Metalized aluminium reflector in assorted finishes: specular or sandblasted depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
Drop glass disk accessory available in assorted colours [reference M1.A0190].
Drop metal disk accessory available in assorted colours [reference M1.B0190].
LED Module Tunable White: 2700K - 6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI/DSI.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.
Luminous flux of the light source: 1410lm
Luminous flux of the luminaire: 1100lm
Light source power: 10 W
Luminaire power: 14,3 W
mA: 350 mA
Colour temperature: 2700K-6500K
Chromaticity Tolerance: MacAdam 3
CRI: >90
Beam angle: 39
Imax Cd: 2412
UGR: <16
Photobiological safety group: 1
This product contains a light source of energy efficiency class: F
Rated Median useful life: >60000h L90B10
Class: 2
IP: 20
Incandescent filament: 650°
Recessed diameter: 170mm
Luminaire diameter: 190mm
Weight: 1.38 Kg
Electronic Equipment:
T: SwitchDIM/ColourSwitch/DALI/DSI
There are available accessories for dimming devices.
*Add the suffix after the reference to indicate your electronic equipment choice.
Upgradeable, replaceable, repairable
Marks
Accesories and finishes
Standard finishes
- 1: RAL9010: Pure White
- 2: RAL9005: Jet Black
- 4: RAL7016: Anthracite Grey
- 7: RAL9006: White Aluminium
More finishes are available
