147ATM.1-R1186
147ATM
147ATM.1-R1186
147ATM.1-R1186

ATOMIC



147ATM.1-R1186

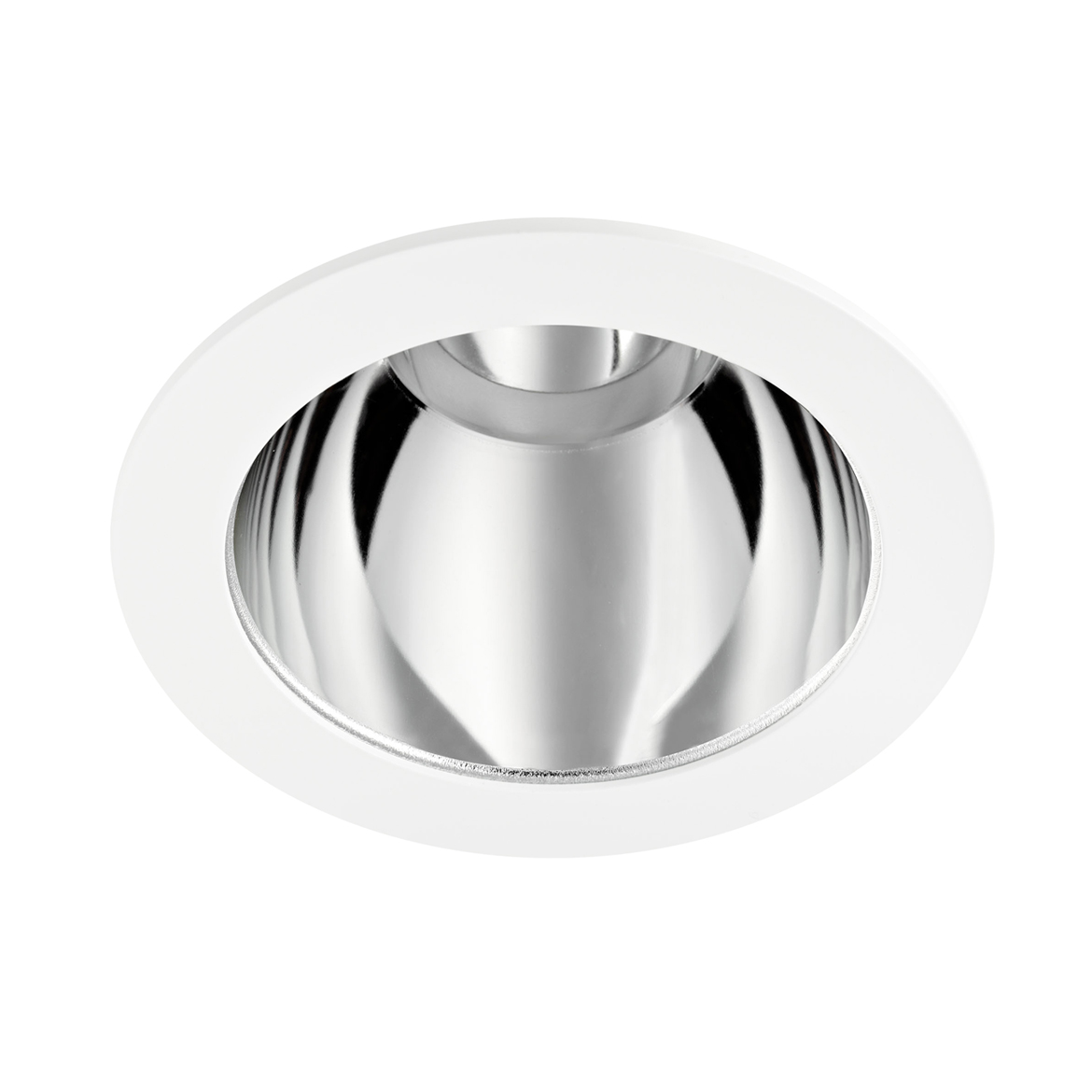

Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 190mm.
Metalized aluminium reflector in assorted finishes: specular or sandblasted depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0190].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0190].
Drop glass disk accessory available in assorted colours [reference M1.A0190].
Drop metal disk accessory available in assorted colours [reference M1.B0190].
LED Module Tunable White: 2700K - 6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI/DSI.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.

Luminous flux of the light source: 1980lm

Luminous flux of the luminaire:  1683lm

Light source power: 16 W

Luminaire power: 19,8 W

mA: 500 mA

Colour temperature: 2700K-6500K

Chromaticity Tolerance: MacAdam 3

CRI: >90

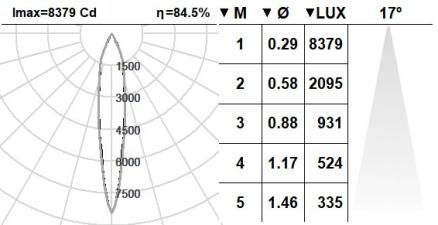

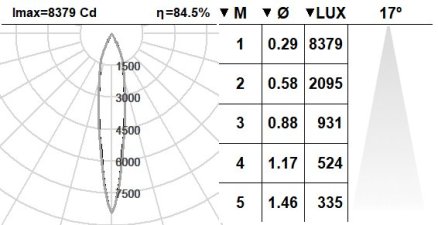

Beam angle: 17

Imax Cd: 10802

UGR: <16

Photobiological safety group: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >60000h L90B10

Class: 2

IP: 20

Incandescent filament: 650°

Recessed diameter: 170mm

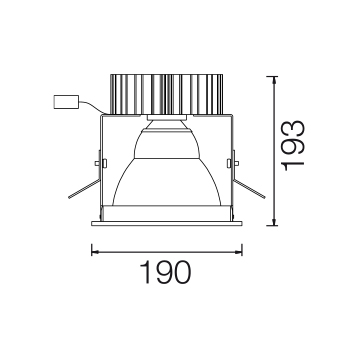

Luminaire diameter: 190mm

Weight: 1.38 Kg

Electronic Equipment:
T: DALI-2/DSI/SwitchDIM/ColourSwitch
There are available accessories for dimming devices.

*Add the suffix after the reference to indicate your electronic equipment choice.

Upgradeable, replaceable, repairable

Reparability1 Reparability2

Marks

CE

Accesories and finishes

Standard finishes

  • 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium

More finishes are available
