F117ATM
D151ATM DPnoimatge
151ATM.1-R1186

ATOMIC 151ATM.1-R1186

CLASS2 IP20 FIL650 DECO INST +RAL INFLA CE
Recessed ceiling-mounted downlight with symmetrical light distribution to achieve an effective task, accent or ambient lighting.
Circular design in diameter 220mm.
Metalized aluminium reflector in assorted finishes: specular or sandblasted depending on the beam angle outcome.
Powder painted die-cast aluminium trim available in assorted finishes, customized RAL under request.
Glass accessory available to increase the protection rating to IP54 | IK05 from underneath [reference M2.B0220].
316L stainless steel trim accessory with flush glass and silicone rubber gasket to increase the protection rating to IP65 | IK07 from underneath [reference M2.C0220].
Drop glass disk accessory available in assorted colours [reference M1.A0220].
Drop metal disk accessory available in assorted colours [reference M1.B0220].
LED Module Tunable White: 2700K - 6500K.
Remote driver supplied.
Electronic options for lighting control: SwitchDIM/ColourSwitch/DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Passive temperature management: heat dissipation flows through aluminium heat sink.
Ceiling-mounted using galvanised steel support with screws, ceiling thickness up to 30mm.

Luminaire luminous flux: 1584lm

Luminaire connected power: 19,8 W

Light source luminous flux: 1980lm

Light source power: 16 W

mA: 500 mA

Colour temperature: 2700K-6500K

Chromaticity Tolerance: MacAdam 3

CRI: >90

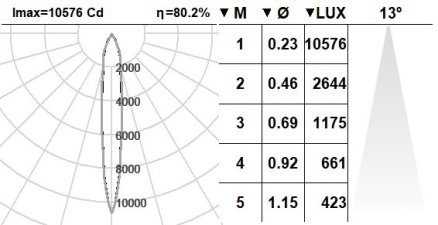

Beam angle: 13

Imax Cd: 13635

UGR: <16

Photobiological risk: 1

This product contains a light source of energy efficiency class: F

Rated Median useful life: >60000h L90B10

Class: 2

IP: 20

Incandescent filament: 650

Recessed diameter: 200mm

Luminaire diameter: 220mm

Weight: 1.67 Kg

Electronic Accessories:

T: Tunable White DALI-2/switchDIM/ColourSwitch

Standard finishes
  • 1: RAL9010: Pure White 1: RAL9010: Pure White
  • 2: RAL9005: Jet Black 2: RAL9005: Jet Black
  • 4: RAL7016: Anthracite Grey 4: RAL7016: Anthracite Grey
  • 7: RAL9006: White Aluminium 7: RAL9006: White Aluminium

All RAL colours are available under request

Upgradeable, replaceable, repairable
Upgradeable, replaceable, repairable icon 1 Upgradeable, replaceable, repairable icon 2
