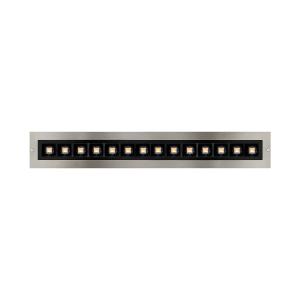

ARVIA 151ARV.82-I2907
Buried uplights with symmetrical light distribution.
Linear fixture in 620mm length, width of 95mm and depth of 123mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant because of its black painted extruded aluminium profile with C5-M special coating for environments with very high corrosivity. Frame made of 316L stainless steel marine grade.
Highly efficient linear printed circuit board.
10 mm protection glass clear as standard.
Black finish modular optics in 14 cells designed to ensure visual comfort.
Built-in driver.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Floor installation with two fixing points.
The electric cable inlet is on one end of the back of the light fixture. Under request, fixtures can also be supplied with two cable inlets, one on each side, for serial installation, reference F3.L1.VCT.
The driver is on the inside of the fixture.
Pre-wiring of 0.5 meters cable 3x1mm2.
IP68 connector to be ordered separately [reference F3.A3 (On/Off) / F3.A5 (DALI) ].
Insertion box supplied with the lighting fixture.
Passive temperature management.
Linear fixture in 620mm length, width of 95mm and depth of 123mm.
Protection rating against dust and moisture: complete IP67.
Protection rating for resistance to harmful mechanical impacts: IK10.
Robust and corrosion-resistant because of its black painted extruded aluminium profile with C5-M special coating for environments with very high corrosivity. Frame made of 316L stainless steel marine grade.
Highly efficient linear printed circuit board.
10 mm protection glass clear as standard.
Black finish modular optics in 14 cells designed to ensure visual comfort.
Built-in driver.
Electronic options for lighting control: DALI-2.
The driver contained in this luminaire complies with European Directive 2009/125/EC establishing flicker limits: PstLM ≤ 1 and SVM ≤ 0.4.
Floor installation with two fixing points.
The electric cable inlet is on one end of the back of the light fixture. Under request, fixtures can also be supplied with two cable inlets, one on each side, for serial installation, reference F3.L1.VCT.
The driver is on the inside of the fixture.
Pre-wiring of 0.5 meters cable 3x1mm2.
IP68 connector to be ordered separately [reference F3.A3 (On/Off) / F3.A5 (DALI) ].
Insertion box supplied with the lighting fixture.
Passive temperature management.
DOWNLOADS
ACCESSORIES AND FINISHES
PHOTOMETRIC CHARACTERISTICS
- Luminaire luminous flux: 878lm
- Luminaire efficiency: 72 lm/W
- Light source luminous flux: 1440lm
- CRI: 90
- Colour temperature: 2700K
- Chromaticity Tolerance: MacAdam3
- Beam angle: 65
- This product contains a light source of energy efficiency class: D
- LED reliability at nominal Ta = 25ºC: 90.000h L80B10
TECHNICAL DATA
- Class: I
- IP: 67
- Incandescent filament: 650 ºC
- Embedding dimensions: 605x91mm
- Luminaire dimensions: 620x95mm
ELECTRICAL CHARACTERISTICS
- Luminaire connected power: 12,2 W
- Light source power: 9,4 W
- Constant current: 250 mA
ELECTRONIC EQUIPMENT:
-
S: On/Off (AC/DC, NOT looping through capable)
-
D: DALI-2/switchDIM/corridorFUNCTION
-
B: Bluetooth-Casambi
Upgradeable, replaceable, repairable
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium -
8: Stainless Steel 316L: Marine grade
All RAL colours are available under request
TECHNICAL DATA
- Class: I
- IP: 67
- Incandescent filament: 650 ºC
- Embedding dimensions: 605x91mm
- Luminaire dimensions: 620x95mm
STANDARD FINISHES
-
1: RAL9010: Pure White -
2: RAL9005: Jet Black -
4: RAL7016: Anthracite Grey -
7: RAL9006: White Aluminium -
8: Stainless Steel 316L: Marine grade
All RAL colours are available under request
